566 8D 1C119C1S5L 250 0A

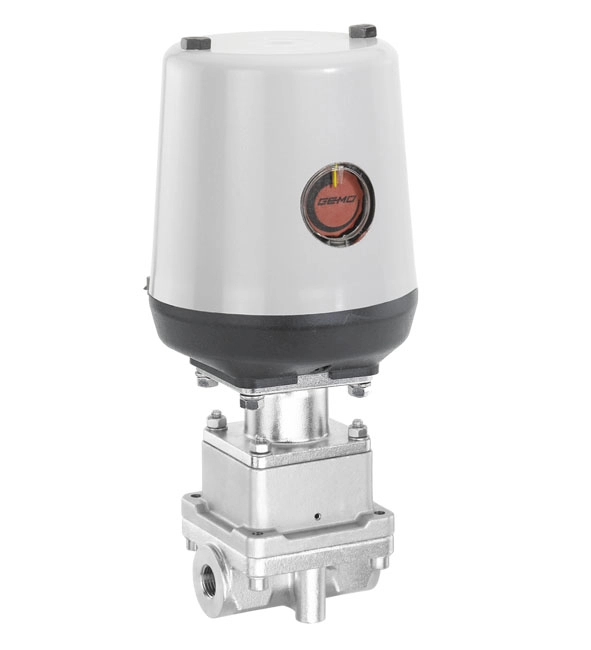

Control valve motorized

Item number:		88789667
Description

Type	566	Control valve
DN	8	DN 8
Body configuration	D	2/2-way body
Connection type	1	Threaded socket DIN ISO 228
Valve body material	C1	ASTM A 351 CF3M, investment casting
Voltage / Frequency	C1	24 V DC
Control module	S5	Positioner, configured for emergency power supply module (NC)
Control characteristic	L	Linear
Kv value	250	250 l/h
Actuator version	0A	Actuator size 0

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 566 eSyStep 2/2-way straight seat control valve has a body with an integrated control mechanism. Pneumatic and motorized actuator types are available. The GEMÜ 566 eSyStep control valve was specially developed for controlling small volumes and allows flow rates from 63 l/h to 2500 l/h.

Control of liquid and gaseous media from 63 to 2500 l/h
Linear or equal-percentage control characteristic options
Hermetic separation between medium and actuator
Actuator and actuator type can be changed without draining or removing the valve body from the piping
Various types of actuators available

Tender specifications for

Language

Language:

Operating instructions (de, en)
