Pneumatic 2/2-way metal seat valve

GEMÜ 514

ConfigureTechnical data sheet

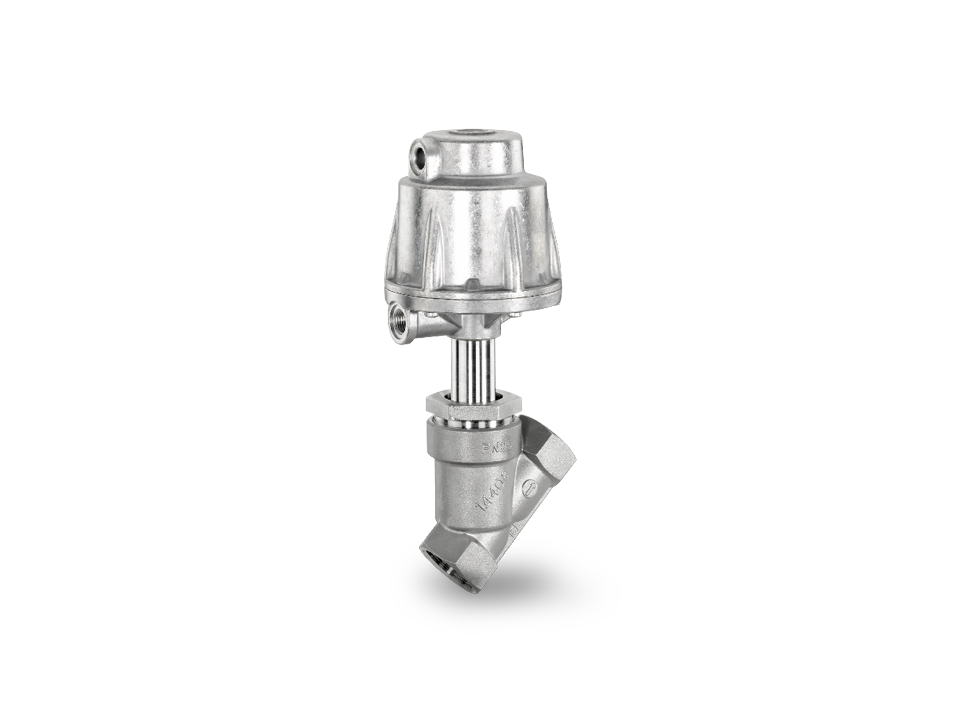

Seat valve with pneumatic stainless steel actuator and angle seat body – suitable for hygienic and industrial processes in liquid and gas control.,Seat valve with pneumatic stainless steel actuator and angle seat body – suitable for hygienic and

Robust angle seat valve with aluminium actuator

Product information

The GEMÜ 514 2/2-way angle seat globe valve has a low-maintenance aluminium piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage.

Key features

  • Robust actuator housing made of aluminium
  • Option for increased operating temperatures
  • Improved control characteristics thanks to POM piston liner
  • Optional for food contact according to Regulation (EC) No. 1935/2004
  • High flow rates due to angle seat design
  • Suitable for vacuum up to 20 mbar (a)
Seat valve with pneumatic stainless steel actuator and angle seat body – suitable for hygienic and industrial processes in liquid and gas control.,Seat valve with pneumatic stainless steel actuator and angle seat body – suitable for hygienic and

Technical features

Parameters
Value
Media temperature
-10 to 180 °C
Ambient temperature
-10 to 60 °C
Operating pressure
0 to 25 bar
Nominal sizes
DN 8 to 80
Body configurations
2/2-way body
Angle valve body
Connection types
Flange
Spigot
Threaded connection
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
NPT
SMS
Body materials
1.4408, investment casting material
1.4435, investment casting material
CC499K, cast bronze material
Seat seal materials
1.4404
PTFE
PTFE, reinforced
Conformities
CRN
EAC
FDA
FMEDA
Functional safety
Oxygen
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
RoHS
TA Luft (German Clean Air Act)
