Modular poppet valve with flexible actuator options

GEMÜ 553

ConfigureTechnical data sheet

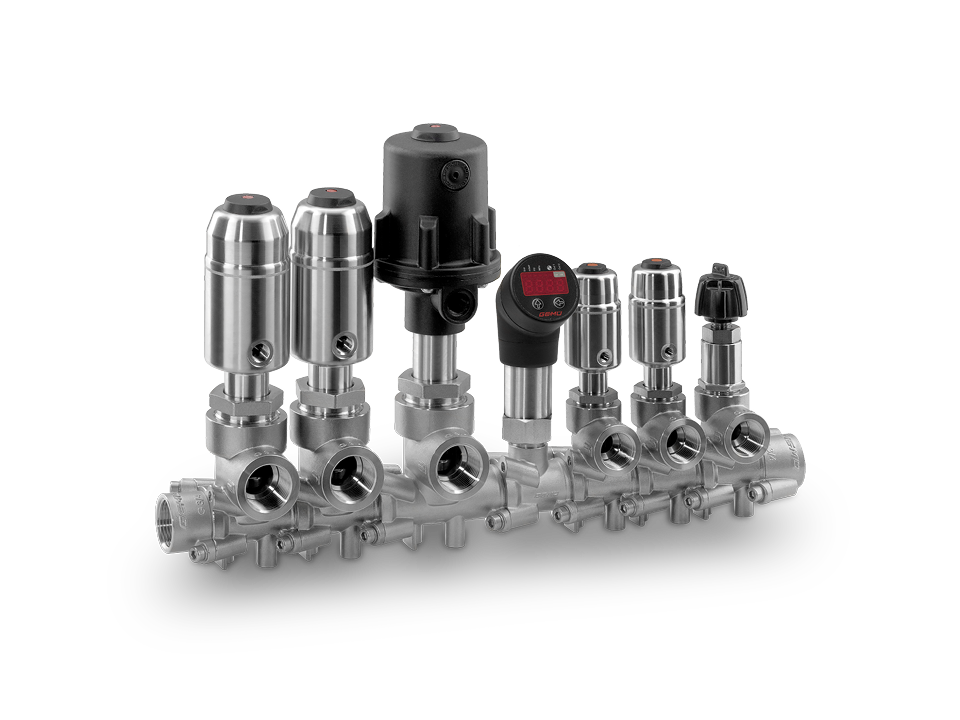

Modular valve island with pneumatic seat valves in stainless steel and plastic designs and digital pressure sensor for precise process control in automated industrial applications.,Modular valve island with pneumatic seat valves in stainless steel and pla

Flexibly combinable diverting valve consisting of various poppet valve modules

Product information

The modular GEMÜ 553 distribution valve comprises various globe valve modules. These can be equipped with manual pneumatic or motorized actuators. The downstream media is isolated using a PTFE seal. The valve spindle is sealed by a self-adjusting gland packing. This provides a low maintenance and reliable valve spindle seal even after an extended period of operation. The wiper ring that is installed upstream of the gland packing also protects this against contamination and damage. The individual modules can be easily connected using screws.

Key features

  • Suitable for mixing, distributing and collecting media
  • Space-saving modular design
  • Several valve and sensor modules can be individually combined
  • Reduced servicing times of the plant compared with single valves as the complete module can be replaced
  • Faster actuator replacement and easily rotatable due to fixing via union nut
  • Selection of manual, pneumatic and electromotive actuators available
Modular valve island with pneumatic seat valves in stainless steel and plastic designs and digital pressure sensor for precise process control in automated industrial applications.,Modular valve island with pneumatic seat valves in stainless steel and pla

Technical details

Parameters
Value
Media temperature
-10 to 180 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 25 bar
Nominal sizes
DN 15 to 20
Body configurations
Multi-port body
Connection types
thread
Connection standards
DIN
ISO
NPT
Body materials
1.4408, investment casting material
Seat seal materials
PTFE
Conformities
FDA
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
RoHS
