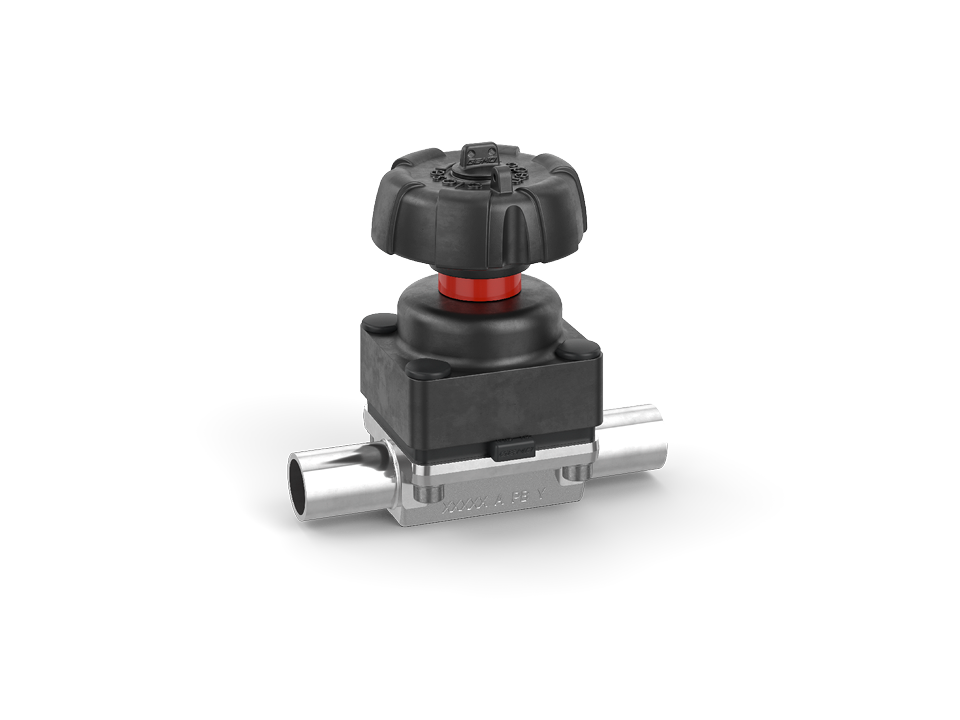

Manual 2/2-way diaphragm valve with metal body

GEMÜ 611

ConfigureTechnical data sheet
Manuell betätigtes 2/2-Wege-Membranventil GEMÜ 611 mit Kunststoff Antrieb und Körper aus Edelstahl

Low-maintenance valve with plastic actuator

Product information

The GEMÜ 611 2/2-way diaphragm valve has a low-maintenance plastic actuator and is manually operated. An integrated optical position indicator is standard.

Key features

  • Extensive range of accessories available, e.g. electrical position indicator for open handwheel position or lockable handwheel clamp (GEMÜ 671)
Manuell betätigtes 2/2-Wege-Membranventil GEMÜ 611 mit Kunststoff Antrieb und Körper aus Edelstahl

Technical details

Parameters
Value
Media temperature
-10 to 80 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 10 bar
Nominal sizes
DN 10 to 20
Body configurations
2/2-way body
Connection types
Clamp
Stutzen
Thread
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
Body materials
1.4435 (316L), block material
1.4435 (BN2), forged material
1.4435 (F316L), forging material
1.4435, investment casting material
1.4539 (904L), forged material
3.7035, titanium, block material
CW617N, brass
Diaphragm materials
EPDM
FKM
PTFE/EPDM
Conformities
BSE/TSE
EAC
FDA
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
Regulation (EU) No. 10/2011
USP

Downloads

17 Results
  • Data sheet GEMÜ 611, 671

    pdf (4 MB) -
    EN

  • Operating instructions GEMÜ 611, 671 611   671

    pdf (7 MB) -
    EN

  • Produktzertifikat passivated - electropolished GEMÜ valve body collection

    pdf (86 KB) -
    DE

  • Technical information GEMÜ 601, 605, 611, 612, 615, 625, 629, 639, 695, 687, 660, 650, 653, 654, 649

    pdf (169 KB) -
    EN

  • Produktbroschüre Winkelgeber

    pdf (195 KB) -
    DE

  • Product brochure Angle gauge

    pdf (195 KB) -
    EN

  • Betriebsanleitung GEMÜ 611, 671

    pdf (7 MB) -
    DE

  • Betriebsanleitung / Operating instructions GEMÜ 611, 671 611   671

    pdf (11 MB) -
    DE/EN

  • Declaration of Conformity - GEMÜ product collection

    pdf (104 KB) -
    EN

  • Technische Information GEMÜ 601, 605, 611, 612, 615, 625, 629, 639, 649, 650, 651, 653, 654, 660, 687, 695

    pdf (170 KB) -
    DE

  • Konformitätserklärung oil grease free - GEMÜ product collection

    pdf (104 KB) -
    DE

  • Användarhandbok GEMÜ 611, 671

    pdf (7 MB) -
    SV
