Pneumatic 2/2-way diaphragm valve with metal body

GEMÜ 615

ConfigureTechnical data sheet

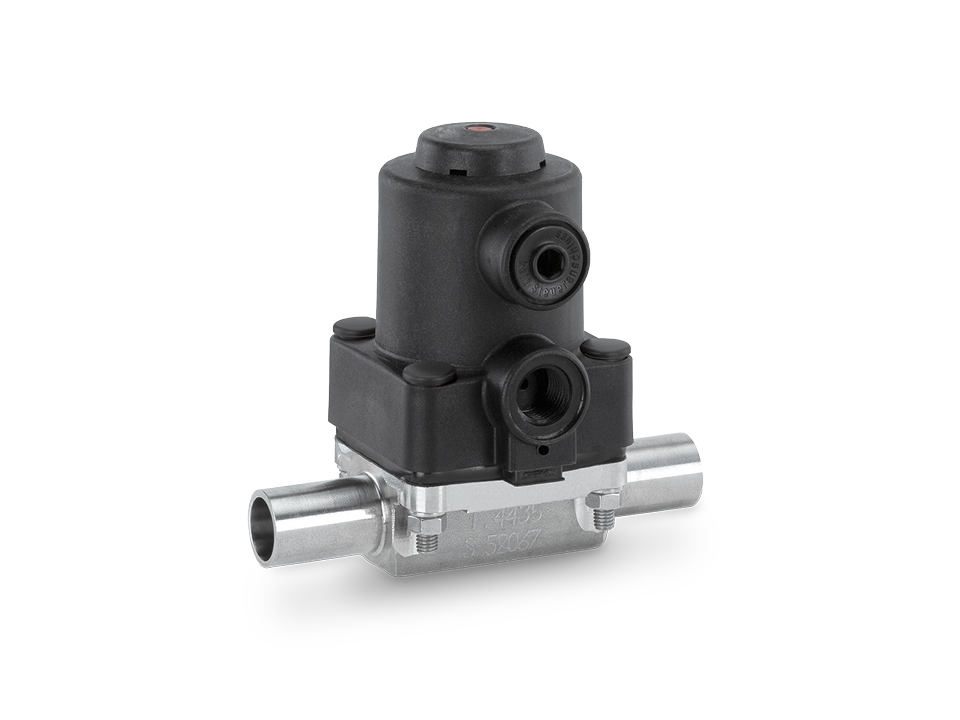

Pneumatically operated stainless steel diaphragm valve with weld ends – ideal for the pharmaceutical, biotechnology, and food industries.

Compact valve with low-maintenance plastic piston actuator in MG10

Product information

The GEMÜ 615 2/2-way diaphragm valve has a low-maintenance plastic piston actuator and is pneumatically operated. An integrated optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Key features

  • Available in diaphragm size 10
  • Wide range of adaptation options for add-on components and accessories
  • Compact design (ideal when space is at a premium)
  • Version according to ATEX on request
  • Compact design (ideal when space is at a premium)
  • Wide range of adaptation options for add-on components and accessories
Pneumatically operated stainless steel diaphragm valve with weld ends – ideal for the pharmaceutical, biotechnology, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 80 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 6 bar
Nominal sizes
DN 10 to 20
Body configurations
Straight through body
Connection standards
ANSI
ASME
BS
DIN
EN
JIS
Connection types
Clamp
Spigot
thread
Body materials
1.4408, investment casting material
1.4435 (316L), forged material
1.4435 (BN2), forged material
1.4435, investment casting material
1.4539 (904L), forged material
CW617N, brass
Diaphragm materials
EPDM
PTFE/EPDM
PTFE/FKM
Conformities
Belgaqua
BSE/TSE
EAC
FDA
FMEDA
Oxygen
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
TA Luft (German Clean Air Act)
USP

Downloads

23 Results
  • Instrucciones de uso GEMÜ 615

    pdf, 5.10 MB, ES

  • bs_p_090_steam_pressure_table_water_en

    pdf, 169 KB, EN

  • Navodila za uporabo GEMÜ 615

    pdf, 587 KB, SL

  • Produktbroschüre Winkelgeber

    pdf, 195 KB, DE

  • Fiche technique GEMÜ 615

    pdf, 3.86 MB, FR

  • Product brochure Angle gauge

    pdf, 195 KB, EN

  • Datasheet GEMÜ 615 (US)

    pdf, 316 KB, EN

  • Datenblatt GEMÜ 615

    pdf, 3.86 MB, DE

  • Functional safety FMEDA - GEMÜ 605, 610, 615, 625

    pdf, 527 KB, EN

  • Betriebsanleitung / Operating instructions GEMÜ 615

    pdf, 6.88 MB, DE, EN

  • Data sheet GEMÜ 615

    pdf, 3.86 MB, EN

  • Declaration of Conformity - GEMÜ product collection

    pdf, 104 KB, EN
