Pneumatic 2/2-way diaphragm valve made of plastic

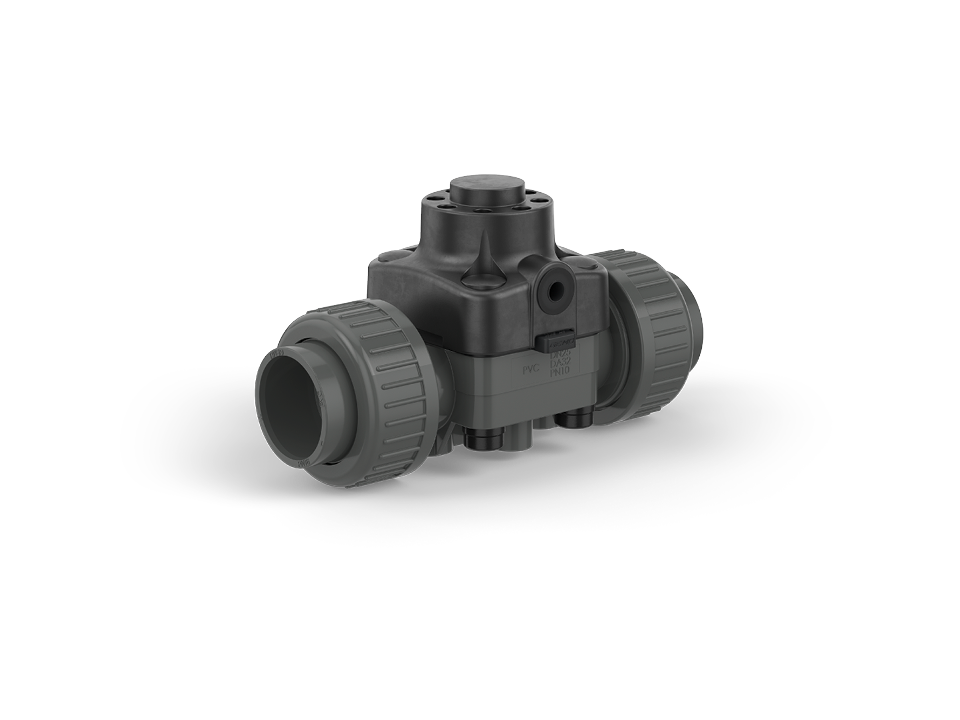

GEMÜ R647

ConfigureTechnical data sheet
Pneumatic diaphragm valve made of plastic with screw connections – ideal for the chemical industry, water treatment, and process control.

Simple diaphragm valve for actuation with air or water

Product information

The GEMÜ R647 2/2-way diaphragm valve is a straight through valve and is pneumatically operated. The valve doesn't have a closing spring and is only closed by applying compressed air. A diaphragm is the sealing element. The control medium applies direct pressure to the shut-off diaphragm pressing it against the shut-off weir in the valve body. The high-flow valve body provides compact dimensions at high flow rates.

Key features

  • Suitable e. g. for dyeing plant, paper industry and automatic feeding installations
  • Operator solution without closing spring, ideal when space is limited
  • Compact, lightweight construction and high performance
  • Simple diaphragm replacement
  • Good flow characteristics due to flow optimised valve body
Pneumatic diaphragm valve made of plastic with screw connections – ideal for the chemical industry, water treatment, and process control.

Technical features

Parameters
Value
Media temperature
-20 to 80 °C-4 to 176 °F
Ambient temperature
-10 to 50 °C14 to 122 °F
Operating pressure
0 to 6 bar0 to 90 psi
Nominal sizes
DN 15 to 501/2'' (DN 15) to 2'' (DN 50)
Body configurations
2/2-way body
Connection standards
ANSI
ASTM
BS
DIN
EN
ISO
JIS
Connection types
Flange
Spigot
Union end
Flange
Spigot
Union end
Body materials
ABS
PP inliner / outliner
PVC-U
PVDF inliner
Diaphragm materials
EPDM
FKM
NBR
Conformities
ACS
EAC
FDA
NSF
System 1+

Downloads

11 Results
  • ti_angle_de_rotation_inclinaison_plastique_fr

    pdf, 680 KB, FR

  • Techn_Gl_Kunststoff_fr_it

    pdf, 192 KB, FR, IT

  • Product certificate RoHS - GEMÜ product collection

    pdf, 450 KB, DE, EN

  • Data sheet GEMÜ R647

    pdf, 1.73 MB, EN

  • ti_drehwinkel_neigungswinkel_kunststoff_de

    pdf, 680 KB, DE

  • Konformitätserklärung OFI water - GEMÜ diaphragm valve collection

    pdf, 886 KB, DE

  • Betriebsanleitung GEMÜ R647

    pdf, 4.87 MB, DE

  • ti_rotation_angle_tilt_angle_plastic_gb

    pdf, 680 KB, EN

  • Fiche technique GEMÜ R647

    pdf, 1.71 MB, FR

  • Techn_Gl_Kunststoff_de_gb

    pdf, 127 KB, DE, EN

  • Datenblatt GEMÜ R647

    pdf, 1.70 MB, DE
