Pneumatic 3/2-way metal seat valve

GEMÜ 354

ConfigureTechnical data sheet

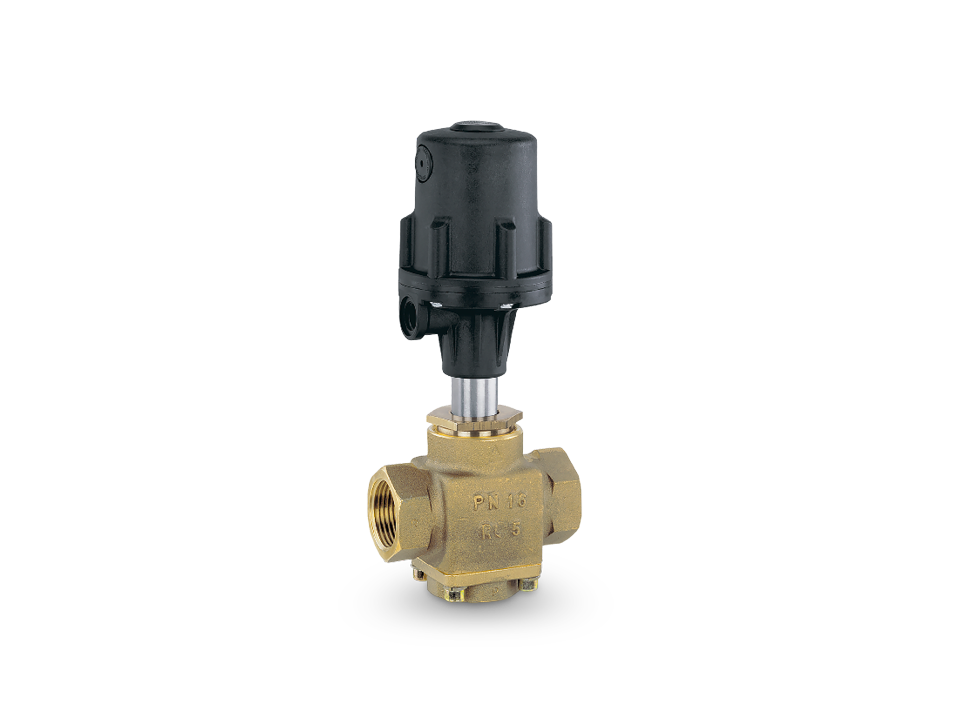

GEMÜ seat valve with pneumatic plastic actuator and robust brass body, ideal for industrial applications with liquids and gases.,GEMÜ seat valve with pneumatic plastic actuator and robust brass body, ideal for industrial applications with liquids and gase

Multi-port seat valve made of gunmetal with internal thread

Product information

The GEMÜ 354 3/2-way globe valve has a robust low maintenance plastic piston actuator and is pneumatically operated. The connection for the control medium can be rotated through 360°. The double sided valve plug is connected to the actuator via a valve spindle. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage.

Key features

  • Lightweight plastic piston drive
  • Suitable for mixing and distributing media
  • Available as shut-off or control valve
  • Long service life
GEMÜ seat valve with pneumatic plastic actuator and robust brass body, ideal for industrial applications with liquids and gases.,GEMÜ seat valve with pneumatic plastic actuator and robust brass body, ideal for industrial applications with liquids and gase

Technical details

Parameters
Value
Media temperature
-10 to 180 °C
Ambient temperature
-10 to 60 °C
Operating pressure
0 to 16 bar
Nominal sizes
DN 15 to 50
Body configurations
Multi-port body
Connection types
thread
Connection standards
DIN
ISO
Body materials
CC499K, cast bronze material
Seat seal materials
PTFE
PTFE, reinforced
Conformities
ATEX
EAC
