Manual metal shut-off damper

GEMÜ 497 Edessa

ConfigureTechnical data sheet

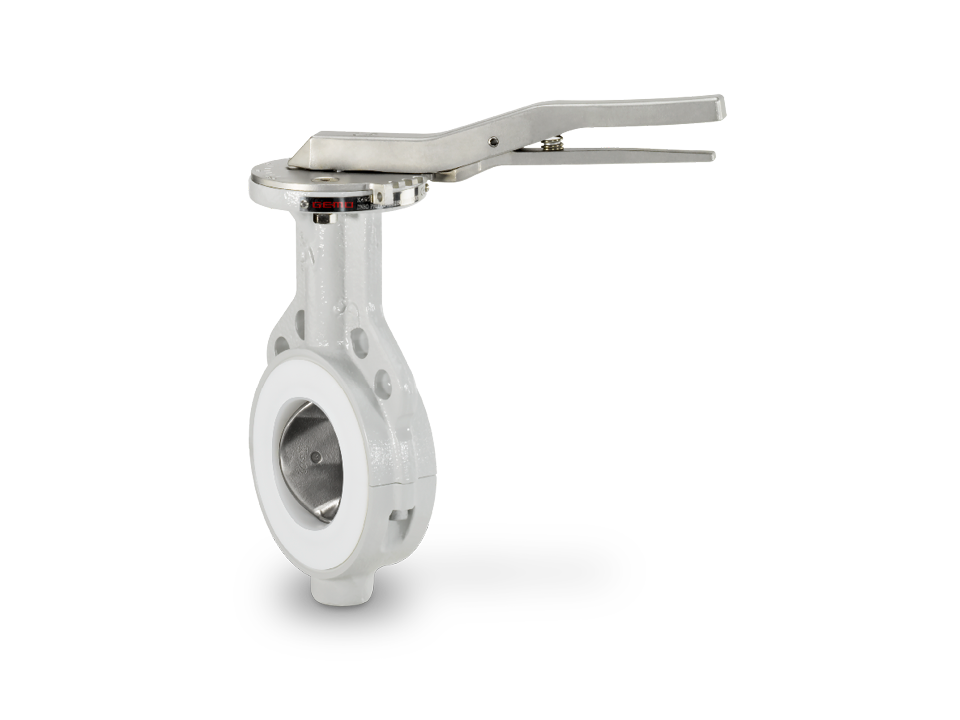

Manual shut-off valve with PTFE lining, stainless steel lever, and flange connection – ideal for the chemical, pharmaceutical, and food industries with high corrosion resistance requirements.

PTFE-sealing, centrally mounted butterfly valve

Product information

The PTFE-sealing, centric GEMÜ 497 Edessa butterfly valve is manually operated. It has a metal hand lever or gearbox depending on customer requirements. Disc and shaft are one piece, body and liner are available in different designs. The butterfly valve is available in nominal sizes DN 25 Up to 1200 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer and lug body versions.

Key features

  • Suitable for chemically corrosive media
  • Bubble tight sealing, in accordance with EN 12266-1/P12, leak rate A
  • High-quality selection of materials can be combined in different ways
  • High level of plant reliability thanks to one-piece shaft and spring-washer-supported seal system
  • Long service life thanks to shaft bearings and special disc and liner geometry
  • Lockable hand lever
  • Optional stainless steel hand lever
Manual shut-off valve with PTFE lining, stainless steel lever, and flange connection – ideal for the chemical, pharmaceutical, and food industries with high corrosion resistance requirements.

Technical features

Parameters
Value
Media temperature
-20 to 200 °C
Ambient temperature
-20 Up to 95 °C
Operating pressure
0 Up to 10 bar
Nominal sizes
DN 25 to 1200
Housing configurations
Lug
Wafer
Connection standards
AS
ASME
DIN
EN
ISO
JIS
Body materials
1.4404, block material
EN-GJS-400-18-LT, SG iron material
S355J2 + N, cast steel material
VE Duroplast, reinforced
Body coating
Epoxy
Liner materials
PTFE/EPDM
PTFE/FKM
PTFE/silicone
Disc materials
1.4404 (316L), forged material
1.4469, Duplex cast steel material
2.4602 (alloy 22), block material
3.7035, titan
Disc coating
PFA
Conformities
ATEX
EAC
FDA
FMEDA
TA Luft (German Clean Air Act)
