Intelligent electrical position indicator
GEMÜ 12A0
Do you have any questions? Start a conversation.
Universal position indicator with long-range LEDs
Product information

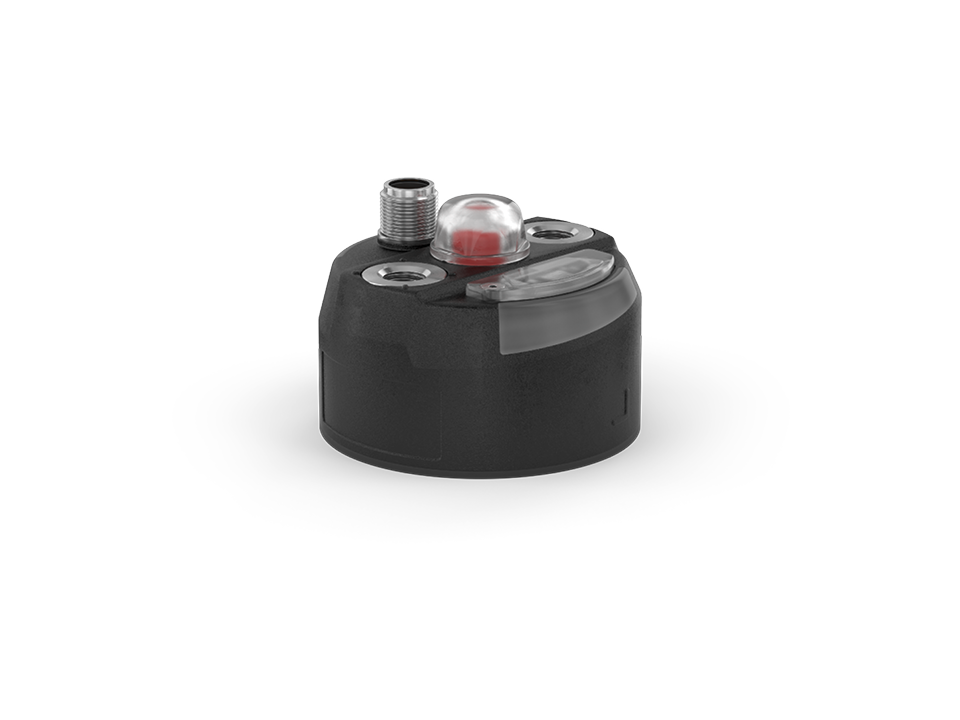

The GEMÜ 12A0 position indicator is compatible with all pneumatically actuated process valves of the new platform generation as well as with quarter turn valves. The position sensor determines the valve position precisely, reliably and wear-free. The current valve position is indicated by far-sighted LEDs and signalled back via electrical signals. The innovative position indicator is characterised by modern communication interfaces, integrated sensors and the option of operation via the GEMÜ app.
Key features
- IO-Link communication and programming interface (incl. SIO mode via 24 V DC signals)
- Self-initialization through autonomous detection of end positions
- Condition monitoring through integrated sensor system
- Configuration and status diagnostics via the GEMÜ App
- Contactless position detection
- Electrical and mechanical position indicator as well as advanced diagnostic messages via high-visibility LED
- Uniform mounting kit with integrated air supply and control pressure detection
Technical features
Parameters
Value
Ambient temperature
-20 to 60 °C
Supply voltages
18 - 30 V DC
24 V DC
Electrical connection types
M12 plug
Communication modes
IO-Link/SIO mode (24 V DC signals)
Protection class
IP 65, IP 67
Downloads
9 Results
- Operating instructions GEMÜ 12A0
- Fiche technique GEMÜ 12A0
- Betriebsanleitung GEMÜ 12A0
- Notice d'utilisation GEMÜ 12A0
- Functional safety -
- Datasheet GEMÜ 12A0
- Scheda dati GEMÜ 12A0
- Manuale d’uso GEMÜ 12A0
- Datenblatt GEMÜ 12A0
