Metal non-return valve
GEMÜ 560
Do you have any questions? Start a conversation.

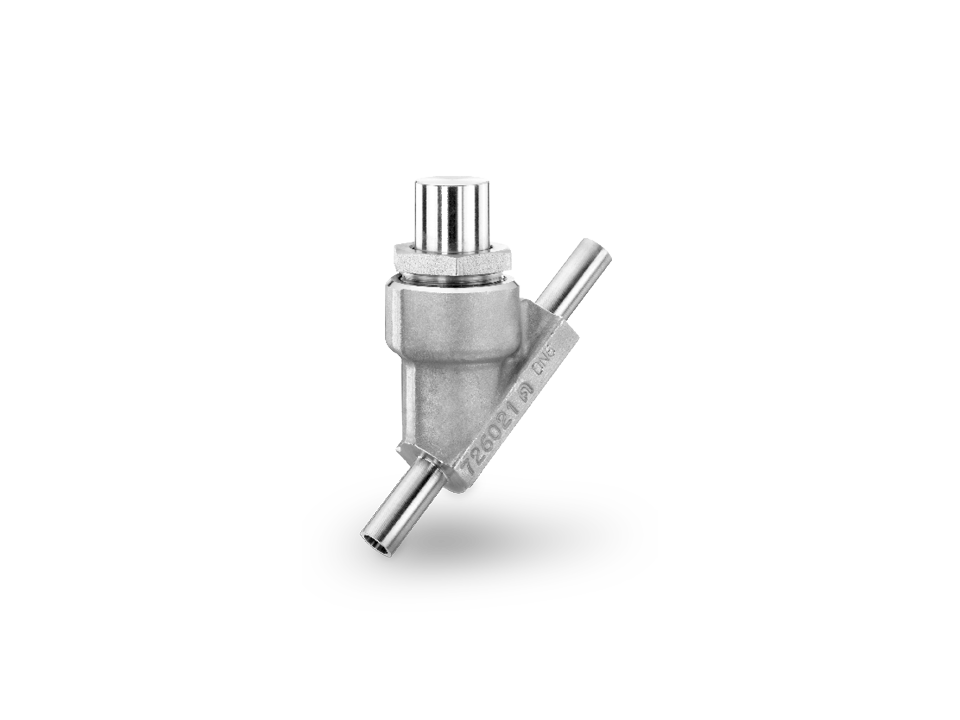

Non-return valve in angle seat design made of stainless steel
Product information
The GEMÜ 560 check valve comprises an angle seat valve body in stainless steel. The valve has either a PTFE or PFA seat for tight shut off. The valve is available with various connection types. The valve is available with various connection types.
Key features
- High flow rates due to angle seat design
- Seven different connection codes for worldwide use
- Suitable for use with liquid media
Technical features
Parameters
Value
Media temperature
-10 to 180 °C
Ambient temperature
-10 to 60 °C
Operating pressure
0,2 to 25 bar
Nominal sizes
DN 6 to 50
Connection types
Clamp
Flange
Spigot
Threaded connection
Connection standards
ANSI
ASME
DIN
EN
ISO
SMS
Body materials
1.4408, investment casting material
1.4435 (BN2), forged material
1.4435, investment casting material
Seal materials
PFA
PTFE
Conformities
ATEX
EAC
FDA
RoHS
