Process solenoid valves

Our process solenoid valves offer you reliable solutions for a wide range of applications - from neutral to aggressive, gaseous or liquid media. These short-stroke poppet valves, operated by an electromagnetic actuator, are particularly suitable for handling small quantities.
Three different GEMÜ solenoid valves for process applications.

Key features

  • Fast switching changes: Increase process speed and flexibility
  • Corrosion-resistant: For a long service life and reliable performance, even with aggressive media.
  • Optimised dosing valve for small quantities: Enables precise control even with the smallest doses.

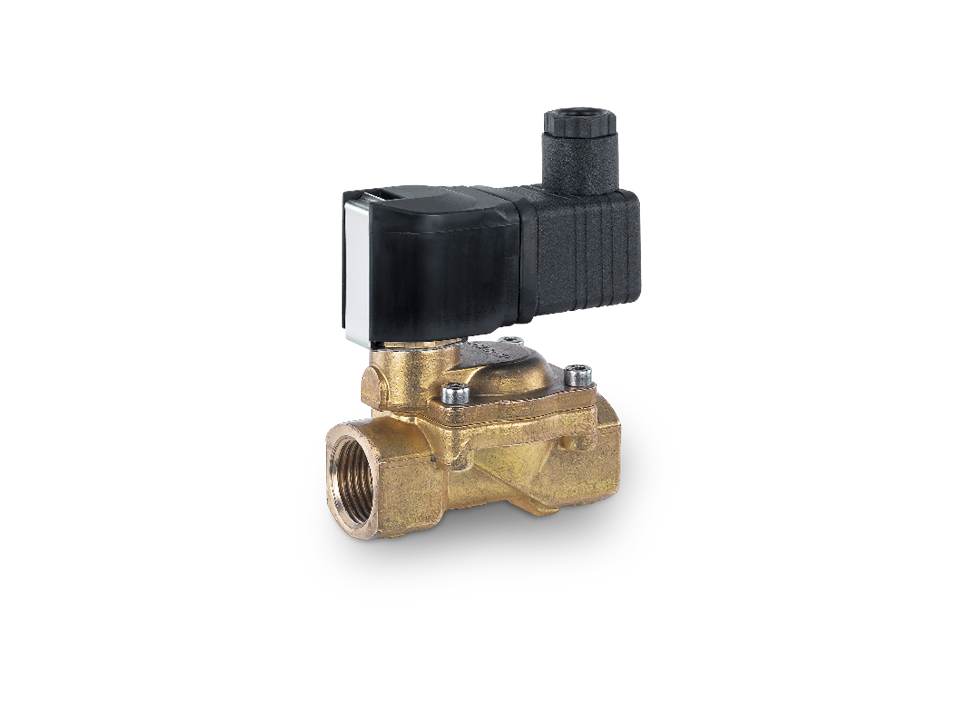

  • Electromagnetically operated brass solenoid valve with black coil and threaded connections for industrial fluid technology.

    Auxiliary controlled process solenoid valve made of metal

    GEMÜ 8258

    Solenoid valve for high temperatures, pressures and pure media

    • Low power consumption
    • High flow rate
    • Soft closing action
    • Low minimum pressure differential
    • Simple, compact construction
    • Simple coil replacement without tools (Click-on®)
    • Optional manual override
    • Explosion protected solenoids acc. to ATEX available as an option
    • Type examination up to DN 25 to DIN EN 60730-2-8
    • Optional mounting bracket available (not pre-assembled)
    • NPT thread available

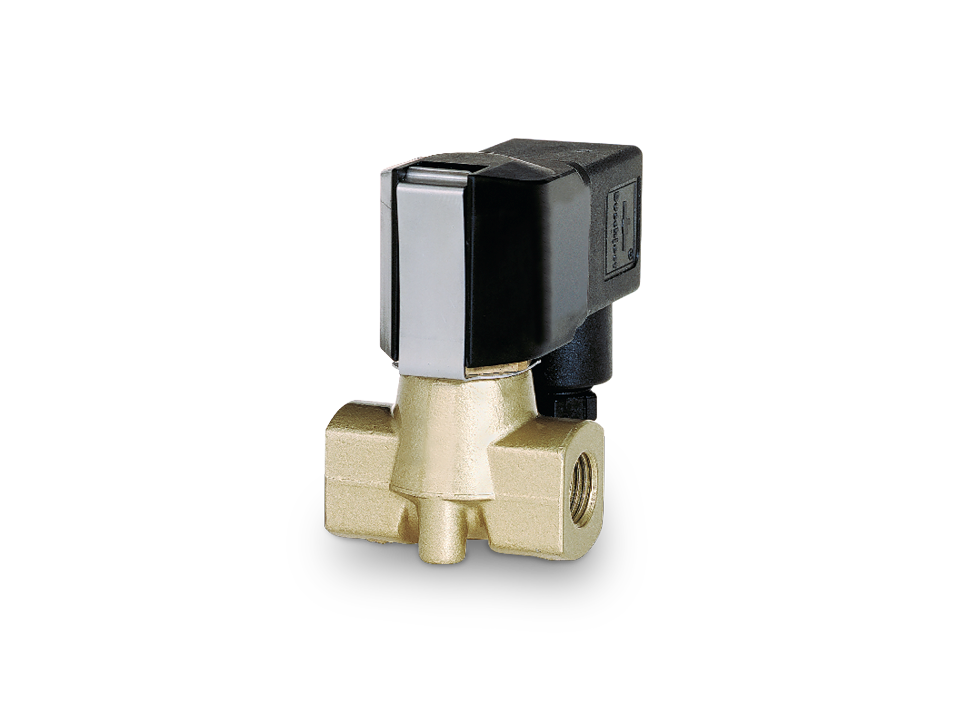

  • Electromagnetically operated solenoid valve with compact brass housing and black coil for industrial applications in fluid control.

    Direct operated process solenoid valve made of metal

    GEMÜ 8259

    Solenoid valve for high temperatures and high pressures

    • Direct acting, normally open or normally closed
    • Valve operates without minimum pressure differential
    • High flow rate
    • Compact design
    • Simple coil replacement without tools (Click-on®)
    • Suitable for vacuum applications
    • Explosion protected solenoids acc. to ATEX available as an option
    • UL and CSA approval available
    • Various threaded connections per nominal size

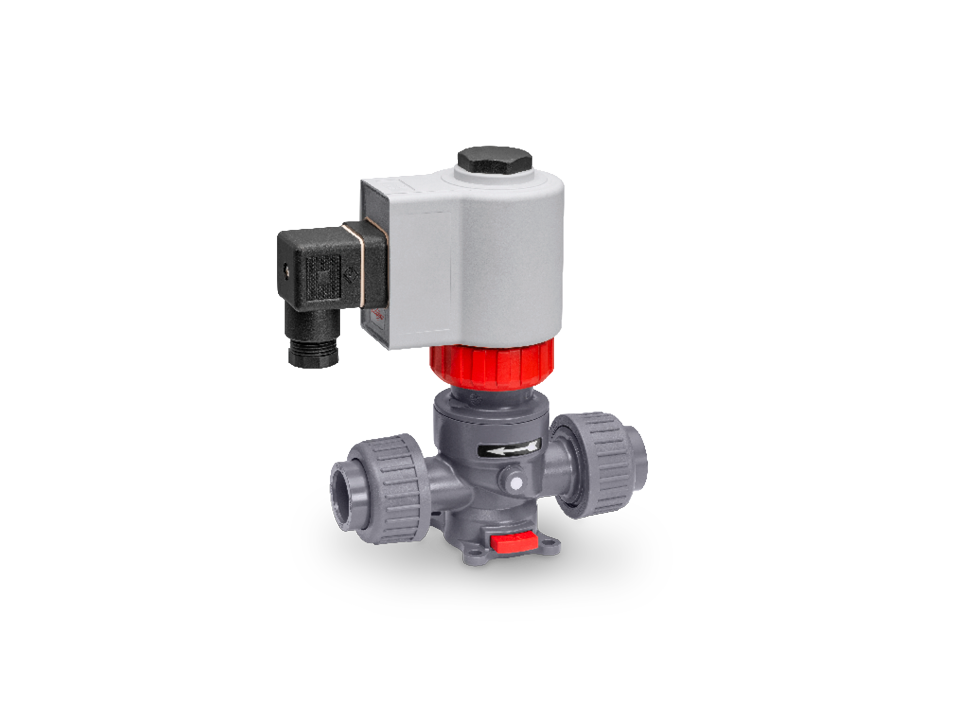

  • Electrically operated solenoid valve made of plastic with side pipe connections, red control element, and standard plug – ideal for precise control of liquids in automated systems.

    Direct operated process solenoid valve made of plastic

    GEMÜ M75

    Direct-controlled process solenoid valve made of plastic

    • Compact design thanks to the small solenoid
    • Resistant against corrosive media
    • Low maintenance
    • Suitable for vacuum
    • GEMÜ electrical position indicator can be fitted

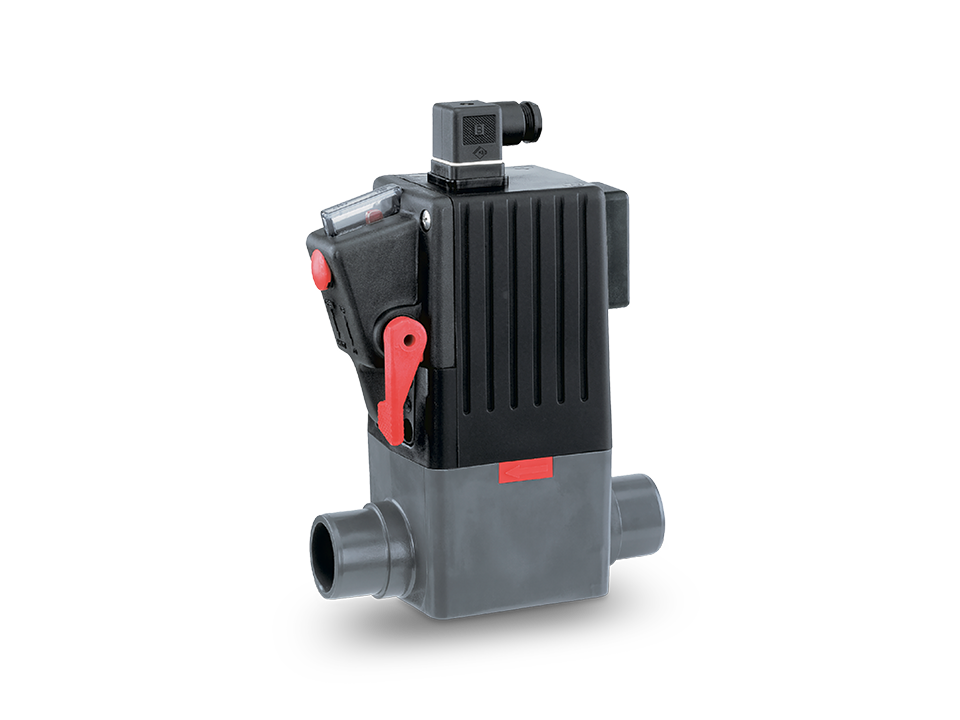

  • Electrically operated solenoid valve with horizontal pipe connections, red hand lever and sight glass – ideal for automated systems and precise media control.

    Direct operated process solenoid valve made of plastic

    GEMÜ 225

    Solenoid valve for neutral or aggressive media

    • Hermetic separation between medium and actuator
    • In case of power failure operation possible by manual override
    • Standard integral optical position indicator

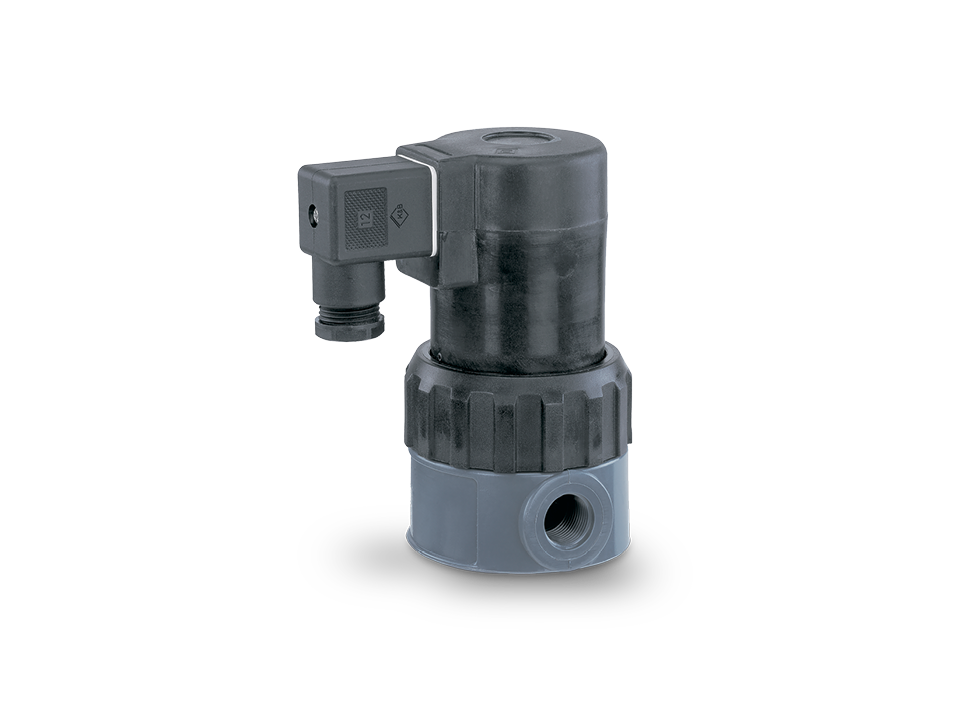

  • Electrically operated solenoid valve made of plastic with plug connection and threaded connection on the side – ideal for precise control in industrial fluid systems.

    Direct operated process solenoid valve made of plastic

    GEMÜ 202

    Solenoid valve in DN 10 and DN 15 for neutral or aggressive media

    • Good cleanability
    • Suitable for clean and slightly contaminated media
    • Hermetic separation between medium and actuator
    • The solenoid can be replaced without removing the valve body from the piping

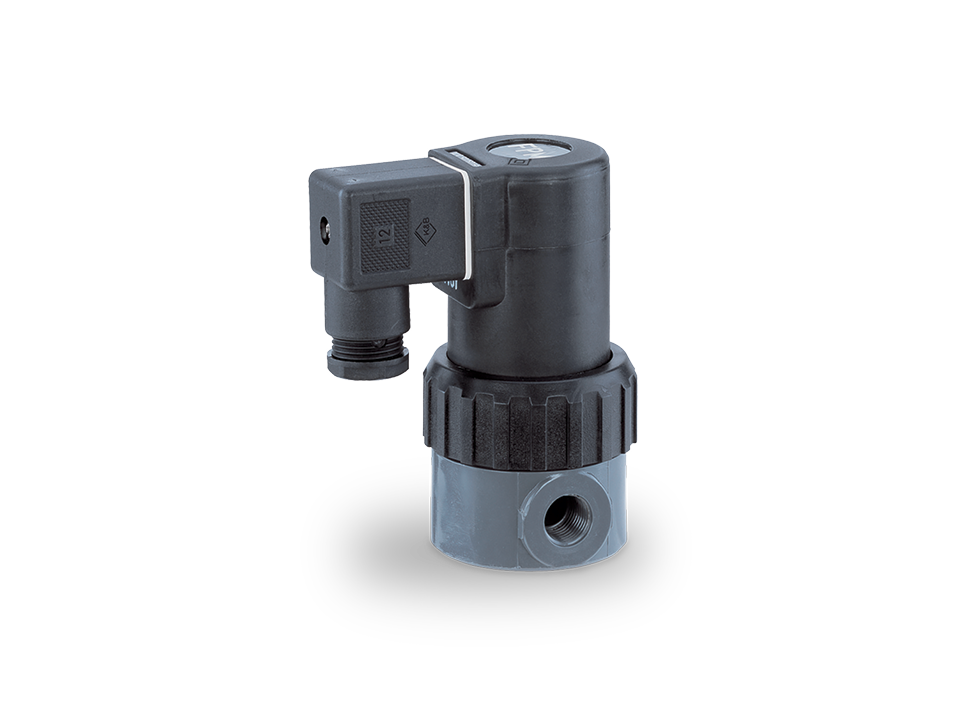

  • Electrically operated solenoid valve made of plastic with rectangular connection plug and threaded connection on the side – suitable for automated fluid control.

    Direct operated process solenoid valve made of plastic

    GEMÜ 102

    Solenoid valve in DN 6 to DN 10 for neutral or aggressive media

    • Good cleanability
    • Suitable for clean and slightly contaminated media
    • Hermetic separation between medium and actuator
    • The solenoid can be replaced without removing the valve body from the piping
  • Compact electrically operated solenoid valve with gray pipe connections, red hand lever, and standard plug – for precise control of media in automated processes.

    Direct operated process solenoid valve made of plastic

    GEMÜ 205

    Solenoid valve for neutral or aggressive media

    • Hermetic separation between medium and actuator
    • In case of power failure operation possible by manual override
    • Standard integral optical position indicator

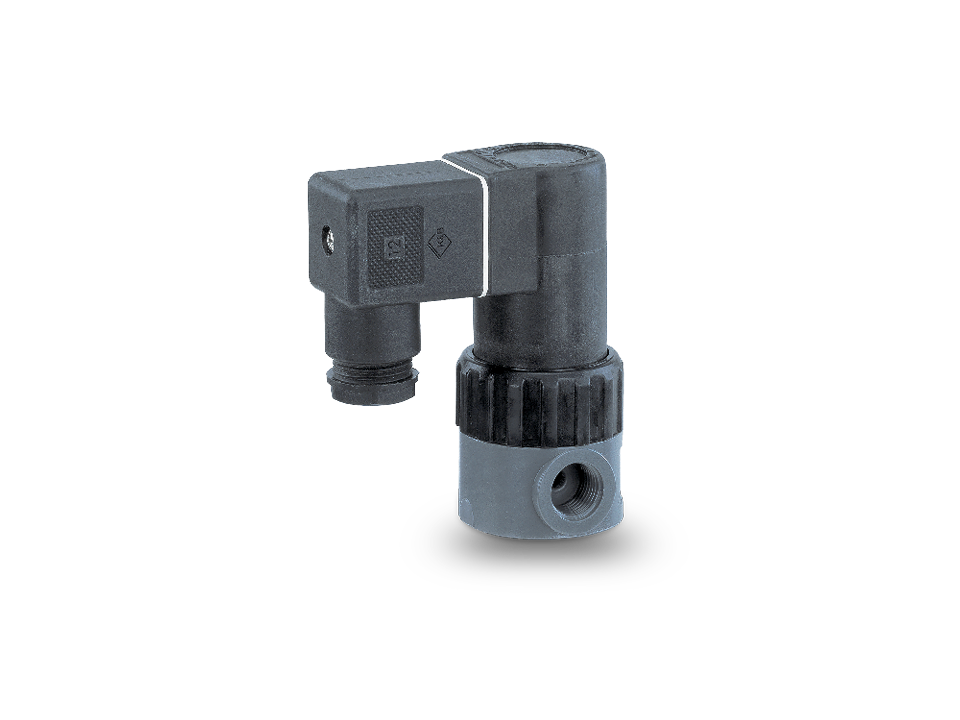

  • Electrically operated solenoid valve with plug connection and threaded connection made of plastic – for precise control of liquids in industrial systems.

    Direct-controlled process solenoid valve made of plastic

    GEMÜ 52

    Compact solenoid valve up to DN 6 for neutral or aggressive media

    • Compact size for the smallest nominal sizes
    • Suitable for clean and slightly contaminated media
    • Hermetic separation between medium and actuator
    • The solenoid can be replaced without removing the valve body from the piping
