Single-use valves/components

If cross-contamination must be avoided or a simplified system design is required, single-use valves and components are used. With single-use diaphragm valves, the valve body is separated from the actuator and disposed of after a single use. In contrast, the actuator remains in the system for multiple use.

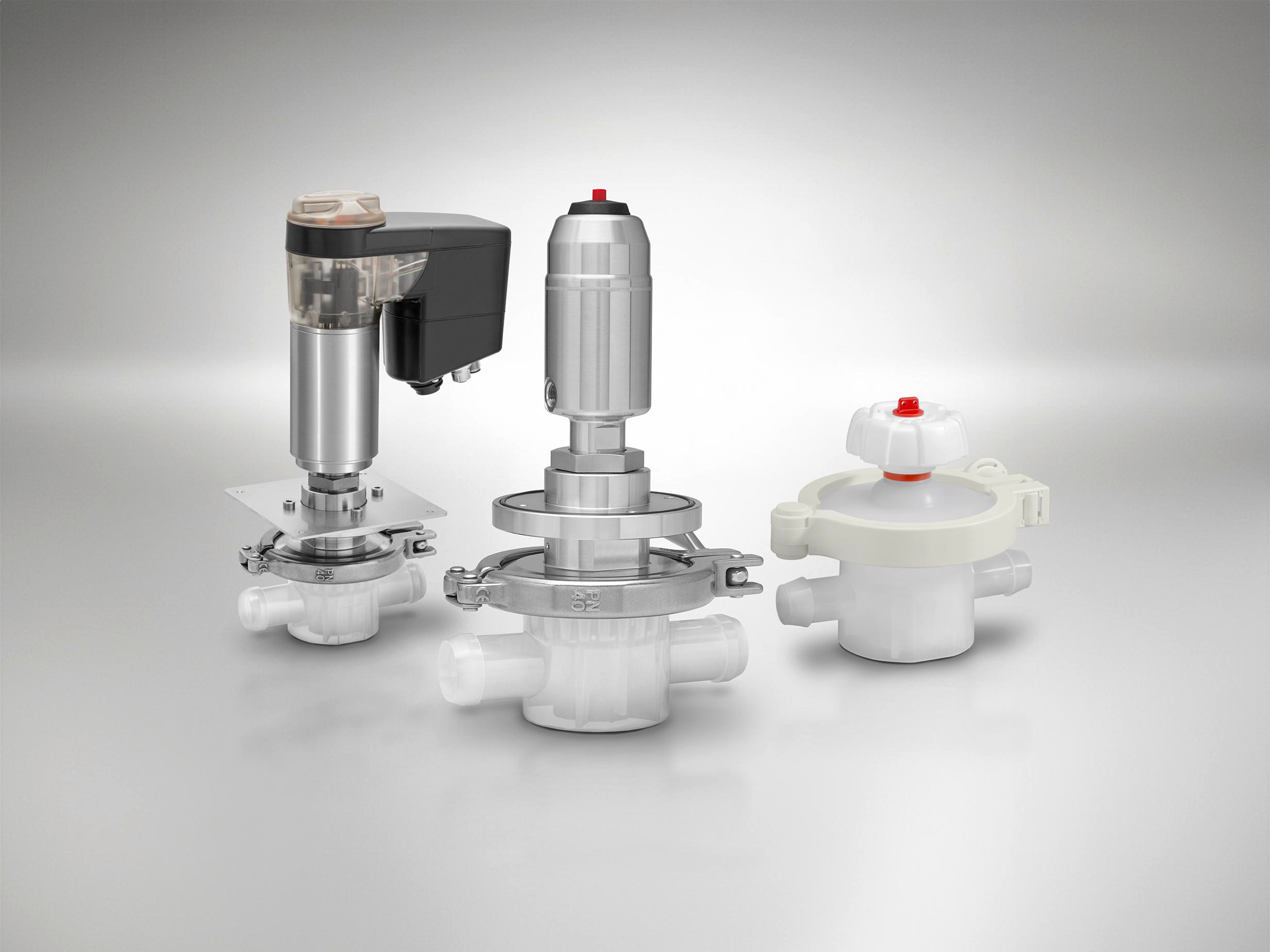

Three GEMÜ single-use valves with different actuator solutions.
  • Transparent GEMÜ single-use valve body with tube connections – ideal for sterile processes in the pharmaceutical and biotech industries, prepared for integration of a suitable actuator.

    Diaphragm valve body for single-use applications

    GEMÜ SUB

    Valve body with welded diaphragm

    • Manufactured in ISO class 8 cleanroom
    • Mechanically stable and gamma and X-ray sterilisable body material
    • The valve body meets the purity requirements of the pharmaceutical industry (USP 85, 788, 790)
    • Certificate of Conformity for purity, safety and physical and chemical tests
    • Validation Guide on request
    • Impact resistant, corrosion resistant
  • GEMÜ single-use valve with electrically operated stainless steel actuator, equipped with position indicator and clamp connection – ideal for sterile applications in the biopharmaceutical industry.

    Electric motorised hollow shaft drive for single-use valve bodies

    GEMÜ SU60

    Valve actuator with integrated positioner and process controller

    • Open/Close function, positioner and process controller
    • Actuation force and actuating speed variably adjustable
    • Operable via web interface eSy-Web and Modbus TCP
    • Extensive functions, such as position feedback, diagnostic functions and opening and closing stroke limitation
    • Hermetic separation between medium and actuator
  • GEMÜ single-use plastic valve with handwheel for manual control – for sterile applications in biopharmaceutical and medical technology.

    Manual actuator for GEMÜ SUB SUMONDO

    GEMÜ SUHK

    Autoclavable, break-proof and corrosion-resistant valve actuator

    • Tried-and-tested, reliable actuator design (remains in system)
    • Hermetic separation between medium and actuator
    • Continuous minimum flow regulation thanks to closing stroke limiter
    • Integral optical position indicator
    • Autoclavable actuator

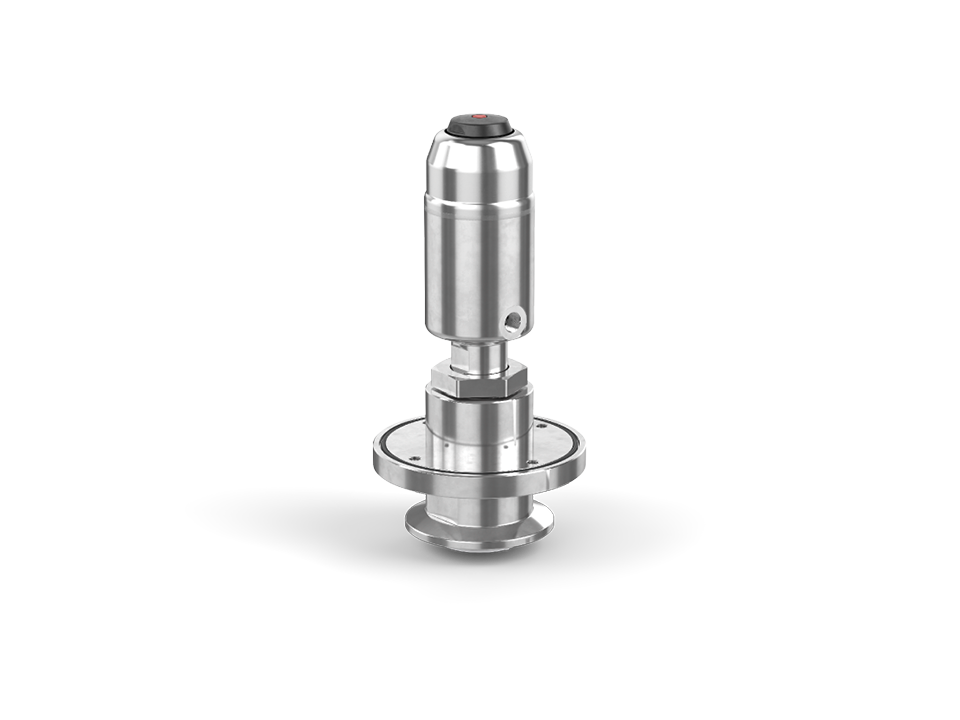

  • GEMÜ single-use valve with pneumatic stainless steel actuator and Tri-Clamp connection – suitable for aseptic applications in the biotechnology and pharmaceutical industries.

    Penumatic actuator for single-use valve bodies

    GEMÜ SU40

    Valve actuator with proven actuator technology and minimised footprint

    • Wide range of adaptation options for add-on components and accessories
    • Tried-and-tested, reliable actuator design (remains in system)
    • Hermetic separation between medium and actuator
    • Integral optical position indicator
    • Impact resistant, corrosion resistant
    • Autoclavable actuator
