Pneumatic 2/2-way diaphragm valve with metal body

GEMÜ 625

ConfigureTechnical data sheet

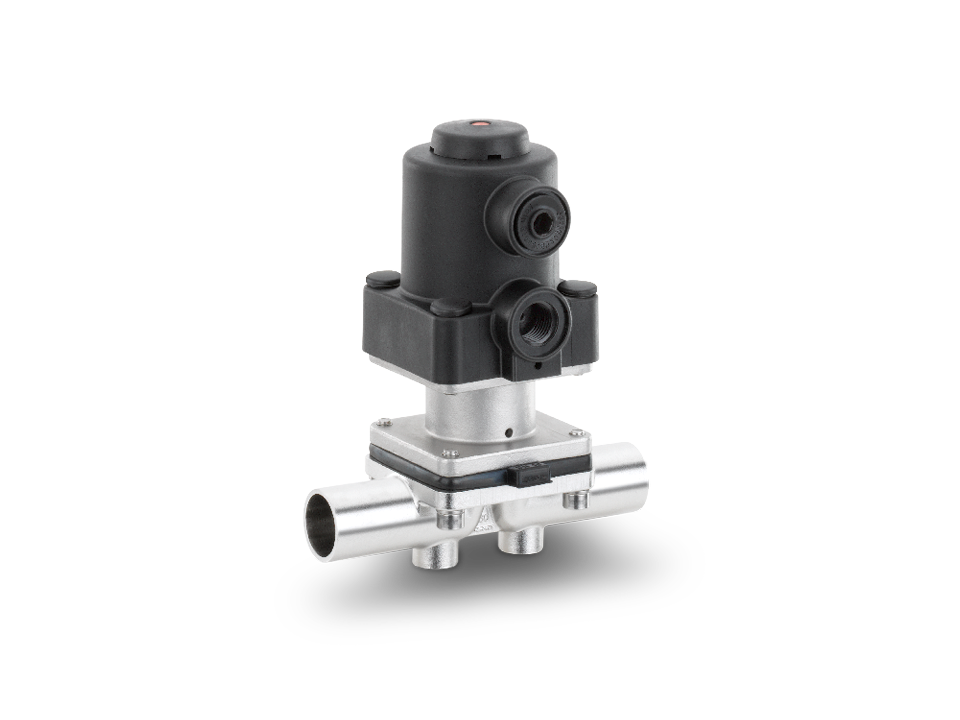

Pneumatically operated T-diaphragm valve made of stainless steel with welded ends – ideal for the pharmaceutical, biotechnology, and food industries.

Compact valve with low-maintenance plastic piston actuator in MG10

Product information

The GEMÜ 625 2/2-way diaphragm valve has a low-maintenance plastic piston actuator and is pneumatically operated. The valve has a metal distance piece. An integrated optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Key features

  • CIP/SIP capable
  • Wide range of adaptation options for add-on components and accessories
  • Compact design (ideal when space is at a premium)
  • Hermetic separation between medium and actuator
  • Compact design (ideal when space is at a premium)
  • Wide range of adaptation options for add-on components and accessories
Pneumatically operated T-diaphragm valve made of stainless steel with welded ends – ideal for the pharmaceutical, biotechnology, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 100 °C
Sterilization temperature
max. 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 6 bar
Nominal sizes
DN 10 to 20
Body configurations
Straight through body
Tank valve body
T-body
Connection types
Clamp
Spigot
thread
Connection standards
ANSI
ASME
BS
DIN
EN
JIS
SMS
Body materials
1.4408, investment casting material
1.4435 (316L), forged material
1.4435 (BN2), forged material
1.4435, investment casting material
1.4539 (904L), forged material
Diaphragm materials
EPDM
FKM
PTFE/EPDM
Conformities
3A
BSE/TSE
CRN
EAC
FDA
FMEDA
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
TA Luft (German Clean Air Act)
USP
