Manual 2/2-way diaphragm valve made of metal

GEMÜ 673

ConfigureTechnical data sheet

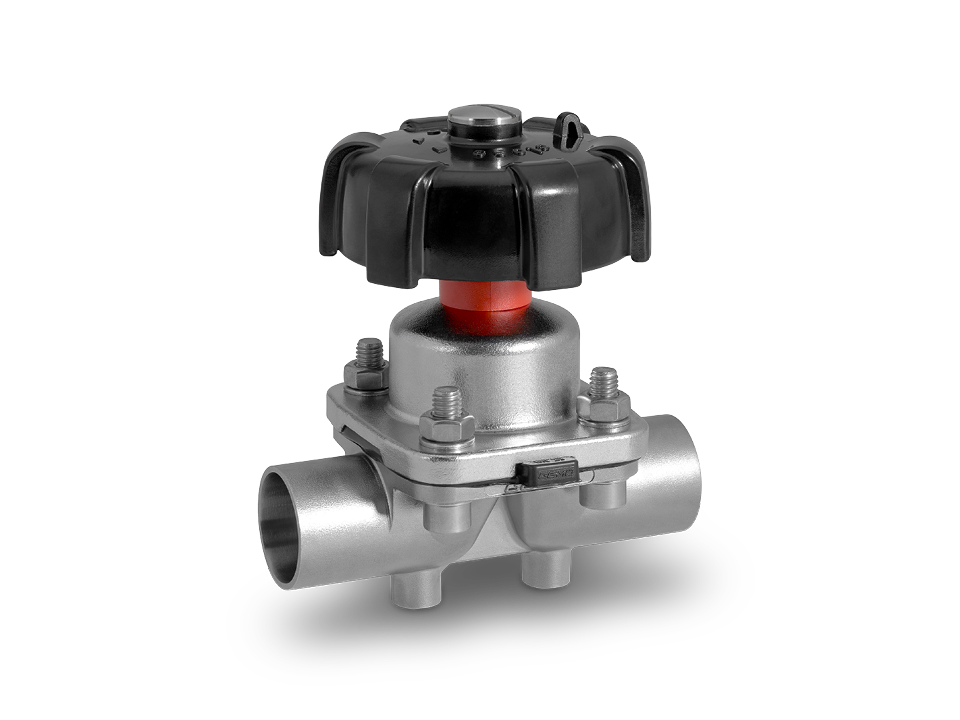

Manual stainless steel diaphragm valve with welded ends and plastic handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Compact valve with handwheel made of temperature-resistant plastic in MG 25 -50

Product information

The GEMÜ 2/2-way diaphragm valve has a temperature-resistant plastic handwheel and is manually operated. A closing stroke limiter to increase service life of the diaphragm and an optical position indicator are integrated as standard.

Key features

  • Long service life of the diaphragm due to patented closing stroke limitation
  • Autoclave capability
  • CIP/SIP capable
  • Continuous minimum flow regulation thanks to closing stroke limiter
  • Compact design (ideal when space is at a premium)
Manual stainless steel diaphragm valve with welded ends and plastic handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 100 °C
Sterilization temperature
Max. 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 10 bar
Nominal sizes
DN 15 to 65
Body configurations
2/2-way body
i-body
Multi-port body
Tank valve body
Connection types
Clamp
Flange
Spigot
Threaded connection
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
SMS
Body materials
1.4408, investment casting material
1.4435, investment casting material
1.4435/316L, forged body material
1.4539/904L, forged and block material
Diaphragm materials
EPDM
FKM
PTFE
