Pneumatic metal butterfly valve

GEMÜ R471 Tugela

ConfigureTechnical data sheet

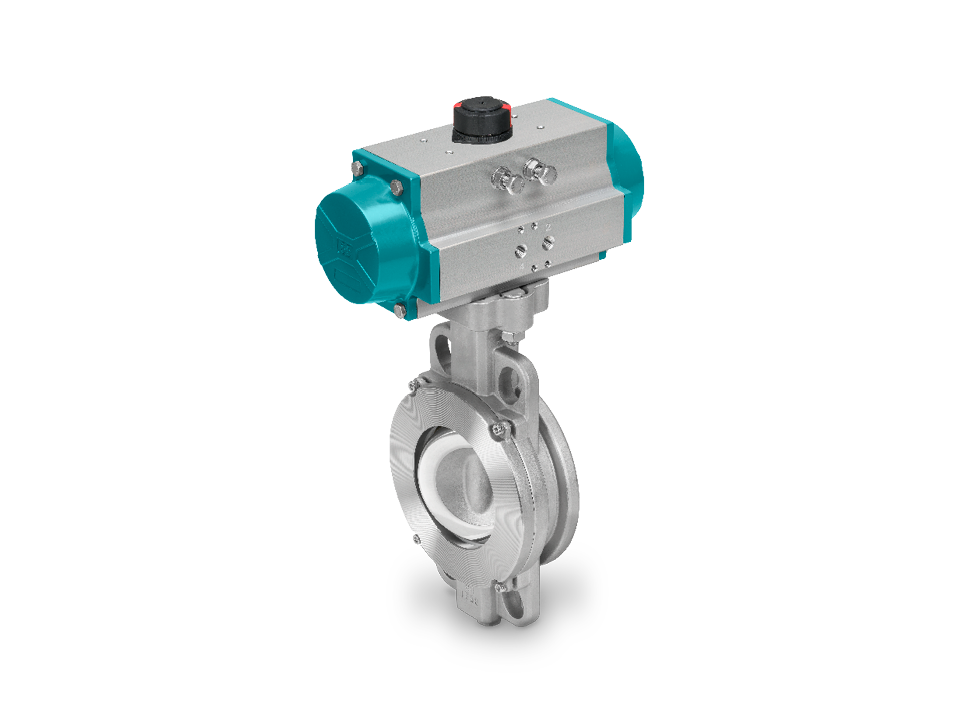

Pneumatically controlled high-performance stainless steel butterfly valve with PTFE lining and flange connection – ideal for the chemical, pharmaceutical, and food industries.

PTFE-sealing, double-eccentric high-performance butterfly valve

Product information

The GEMÜ R471 Tugela double eccentric metal butterfly valve is operated by a pneumatic actuator. The butterfly valve is available in nominal sizes DN 50 Up to 600 and in standardized installation lengths API 609 category A (DIN 3202 K1).

Key features

  • High-performance butterfly valve with double-eccentric construction in order to separate the disc directly from the seat (gasket), thereby reducing friction and extending the service life
  • Continuous shaft with temperature resistant graphite bearing and PTFE gland packing for readjustment in operation for minimized leakage, even at low pressures
  • Antistatic fixture for ATEX area
  • Various actuator types can be selected
  • Bubble tight sealing, in accordance with EN 12266-1/P12, leak rate A
Pneumatically controlled high-performance stainless steel butterfly valve with PTFE lining and flange connection – ideal for the chemical, pharmaceutical, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 230 °C
Ambient temperature
-10 to 70 °C
Operating pressure
0 to 40 bar
Nominal sizes
DN 50 to 600
Housing configurations
Wafer
Connection standards
ASME
ISO
Body materials
1.0619 (WCB), cast steel material with CDP coating
1.4408 (CF8M), investment casting material
Liner materials
PTFE
Disc materials
1.4408
Conformities
ATEX
EAC
FDA
TA Luft (German Clean Air Act)
