Manual 2/2-way metal ball valve

GEMÜ B26

ConfigureTechnical data sheet

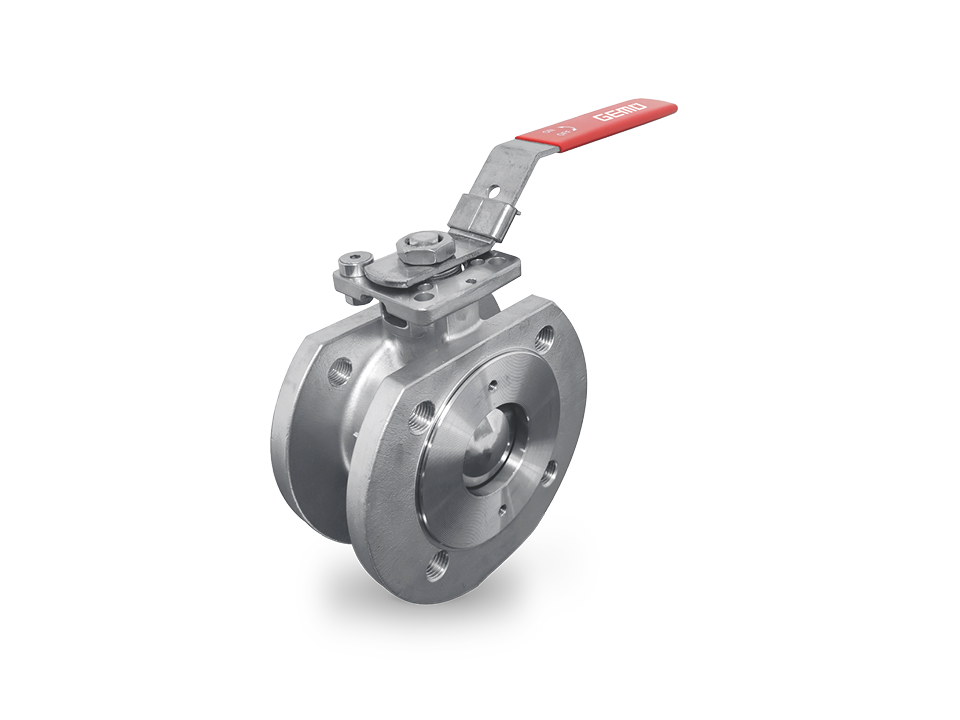

Manual compact stainless steel ball valve with flange connection and red hand lever – ideal for the chemical, pharmaceutical, and food industries.

Compact flanged ball valve with short overall length

Product information

The GEMÜ B26 metal one-piece 2/2-way ball valve has a plastic sleeved hand lever. The seat seal is made of PTFE.

Key features

  • Compact design
  • Blow-out proof shaft
  • High flow rate
  • Full-flow bore
  • ATEX version available as an option
Manual compact stainless steel ball valve with flange connection and red hand lever – ideal for the chemical, pharmaceutical, and food industries.

Technical features

Parameters
Value
Media temperature
-20 to 180 °C
Ambient temperature
-20 Up to 60 °C
Operating pressure
0 Up to 40 bar
Nominal sizes
DN 15 to 100
Body configurations
Straight through body
Ball configurations
Control ball
Connection types
Flange
Connection standards
ANSI
EN
Body materials
1.4408, investment casting material
Seal materials
PTFE
Conformities
EAC
FDA
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
TA Luft (German Clean Air Act)

Downloads

23 Results
  • Betriebsanleitung GEMÜ B26

    pdf, 6.20 MB, DE

  • Operating instructions GEMÜ B26

    pdf, 6.20 MB, PL

  • Produktbroschüre Kompakte Kugelhähne für hohe Durchflusswerte BB06, B26, B46 und B56

    pdf, 323 KB, DE

  • Product certificate RoHS - GEMÜ product collection

    pdf, 450 KB, DE/EN

  • Datasheet GEMÜ B26

    pdf, 8.86 MB, PL

  • Operating instructions GEMÜ B26

    pdf, 6.98 MB, DE/EN

  • Notice d'utilisation GEMÜ B26

    pdf, 6.20 MB, FR

  • Datasheet GEMÜ B26

    pdf, 8.85 MB, EN

  • Product certificate TA-Luft - GEMÜ BB06, B26, B46, B56

    pdf, 104 KB, EN

  • Operating instructions GEMÜ B26

    pdf, 6.20 MB

  • Product brochure Compact ball valves for high flow rates BB06, B26, B46 and B56

    pdf, 322 KB, EN

  • Datasheet GEMÜ B26

    pdf, 8.85 MB
