Manual 2/2-way diaphragm valve with metal body

GEMÜ 612

ConfigureTechnical data sheet

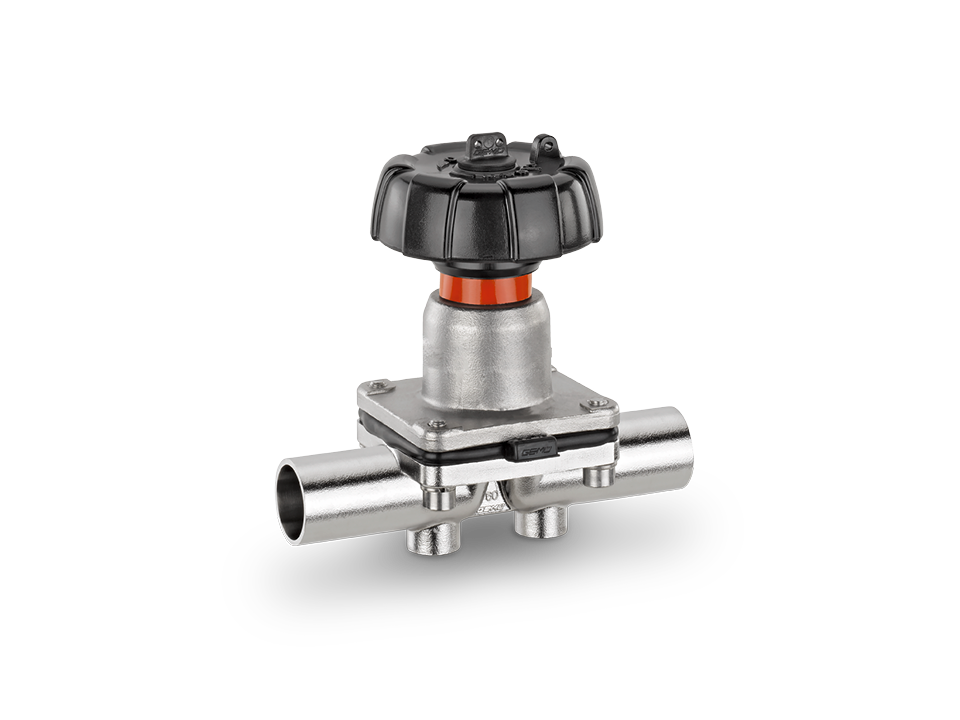

Manually operated stainless steel diaphragm valve with welded ends and black handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Compact valve with temperature-resistant plastic handwheel

Product information

The GEMÜ 2/2-way diaphragm valve has a temperature-resistant plastic handwheel and is manually operated. A closing stroke limiter to increase service life of the diaphragm and an optical position indicator are integrated as standard.

Key features

  • Available in diaphragm size 10
  • Long diaphragm service life thanks to patented closing stroke limiter
  • Autoclave capability
  • CIP/SIP capable
  • Continuous minimum flow regulation thanks to closing stroke limiter
  • Compact design (ideal when space is at a premium)
Manually operated stainless steel diaphragm valve with welded ends and black handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 100 °C
Sterilization temperature
Max. 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 10 bar
Nominal sizes
DN 10 to 20
Body configurations
2/2-way body
Multi-port body
Tank valve body
Connection types
Clamp
Spigot
Threaded connection
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
SMS
Body materials
1.4408, investment casting material
1.4435 (316L), forged material
1.4435, investment casting material
1.4539 (904L), block material
1.4539 (904L), forged material
Diaphragm materials
EPDM
FKM
PTFE/EPDM
Conformities
3A
CRN
EAC
FDA
Oxygen
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
TA Luft (German Clean Air Act)
