SECURE. FLEXIBLE. PROCESS-ORIENTED.
Single-Use technologies have become indispensable in today's medical and pharmaceutical engineering. With GEMÜ SUMONDO Multiport, GEMÜ offers you greater flexibility, effectiveness, and safety in your production campaigns.
With GEMÜ SUMONDO multiport solutions, the actuator unit remains permanently installed in the system. The medium is hermetically sealed from the actuator thanks to the proven GEMÜ SUMONDO operating technology. Unlike a conventional M-block diaphragm valve, the two components that come into contact with the medium (valve body and diaphragm) are welded together. This creates the central component, the Single-Use valve body, which is separated from the actuator and disposed of after use.
Individually manufactured Single-Use multiport block made of polypropylene (medical grade) with welded diaphragms (TPE).
Actuator unit with pneumatic or manual locking for SUMONDO multiport valve bodies.
GEMÜ KSUBH SUMONDO, GEMÜ KSUBA SUMONDO (single-use)

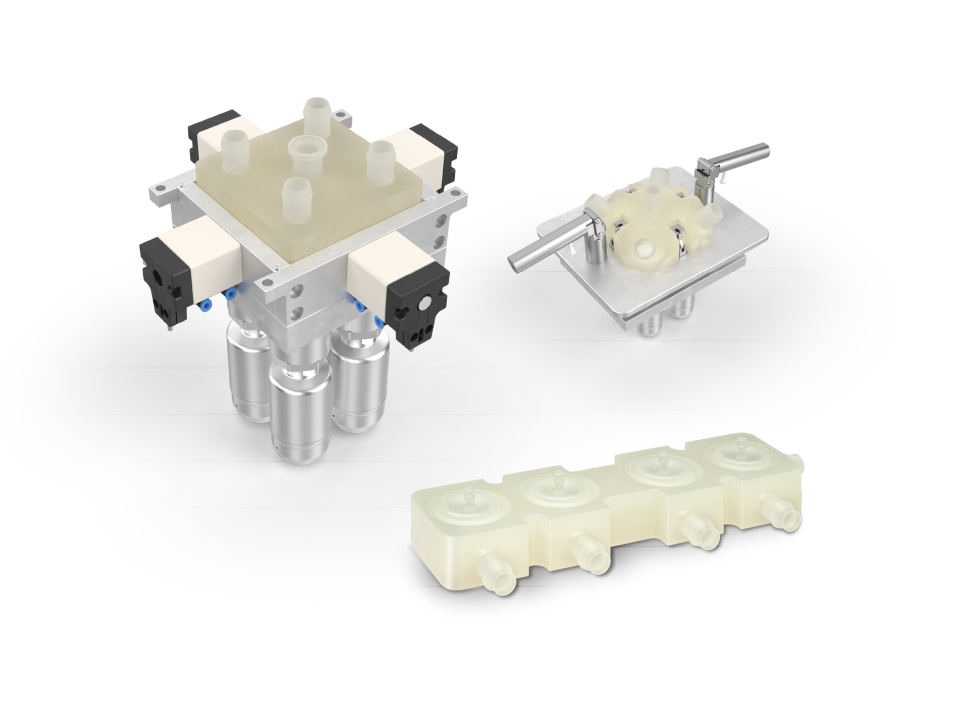

GEMÜ SUMONDO multiport technology brings the well-known advantages of multiport solutions to the world of Single-Use. Here, multiple valve seats are realized in the smallest of spaces, with minimal hold-up volume and maximum safety. Unlike conventional M-block diaphragm valves, the components that come into contact with the media, the block and the diaphragm, are welded together. This process, which has already been proven in single-use GEMÜ SUMONDO diaphragm valves, also enables the creation of a hermetically sealed media area, which is essential for Single-Use applications.

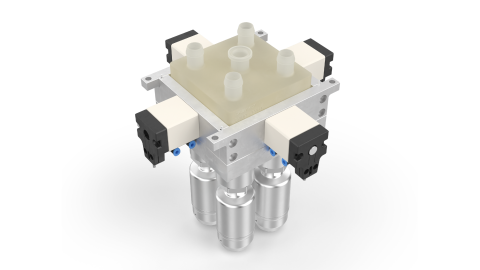

GEMÜ PSUA SUMONDO (Multi-USE)
The GEMÜ PSUH/KSUBH SUMONDO multi-port offers the option of installing the KSUBH single-use M-block recessed in the plant. The PSUH actuator unit is joined to the KSUBH single-use M-block media wetted unit, comprising a multi-port valve block and welded sealing diaphragm, by means of a manually operated clamping mechanism. The toggles themselves are designed to be detachable to prevent the block from being unlocked unintentionally and thus ensure process safety. After use, the media wetted unit can easily be disconnected from the actuator unit and replaced. The actuator unit remains in the plant. The actuator unit is partly completed machinery and is designed solely for installation in the customer’s own machinery and for mounting GEMÜ KSUBH single-use M-blocks.

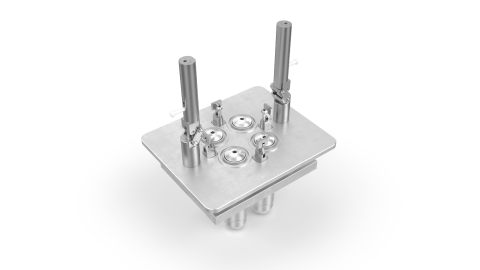

GEMÜ PSUH SUMONDO (multi-use)
The GEMÜ PSUH/KSUBH SUMONDO multi-port offers the option of installing the KSUBH single-use M-block recessed in the plant. The PSUH actuator unit is joined to the KSUBH single-use M-block media wetted unit, comprising a multi-port valve block and welded sealing diaphragm, by means of a manually operated clamping mechanism. The toggles themselves are designed to be detachable to prevent the block from being unlocked unintentionally and thus ensure process safety. After use, the media wetted unit can easily be disconnected from the actuator unit and replaced. The actuator unit remains in the plant. The actuator unit is partly completed machinery and is designed solely for installation in the customer’s own machinery and for mounting GEMÜ KSUBH Single-Use M-blocks
| Media temperature | 5 to 40 °C |
| Ambient temperature | 0 to 40 °C |
| Operating pressure | 0 to 6 bar |
| Nominal sizes | DN 6 to 25 |
| Connection types | Clamp | Hose barb |
| Body materials | PP-H, natural |
| Diaphragm materials | TPE |
Understand requirements. Develop solutions. Deliver results.
To ensure that a single-use solution not only works but also fits seamlessly into your process, clarity, communication, and a common approach are essential. In four coordinated steps, we accompany you from the initial idea to the ready-to-use assembly—transparently and as a partner.
The first step towards a solution
Whether you need a single component or a complete assembly, your technical sketch or P&ID gives us an initial insight into your application. This enables us to work together to create the basis for a targeted project.
Digital or on site
In a one-on-one conversation , we discuss your application in detail and clarify interfaces, requirements, and constraints. We always keep your goal in mind: a technically and economically convincing solution.
Finding a solution together
Based on your specifications, we create a tailor-made solution proposal. This is coordinated with you, adapted and further developed together – until everything fits perfectly.
Ready for use at your location
After joint coordination, we deliver the solution ready-to-use, comprehensively documented, and precisely tailored to your requirements - whether as an individual component or as a fully validated assembly.
Safe. Compact. Well thought-out.
Minimizing the footprint within the system by integrating several valve bodies and sensors in a multi-port valve block.
Integrating various components into a single block, they do not need to be replaced individually, reducing turnover time.
A dead-space-reduced application reduces the intrinsic volume compared to individual valves and thus ensures minimal product loss.
Integrating different components into a Single-Use multiport reduces the number of connection points within a system.
Safe. Efficient. Future-proof.
When maximum safety through the avoidance of cross-contamination and an efficient system design are key, our single-use portfolio is the ideal choice.
