Variable area flow meter with plastic measuring tube

GEMÜ 806

ConfigureTechnical data sheet

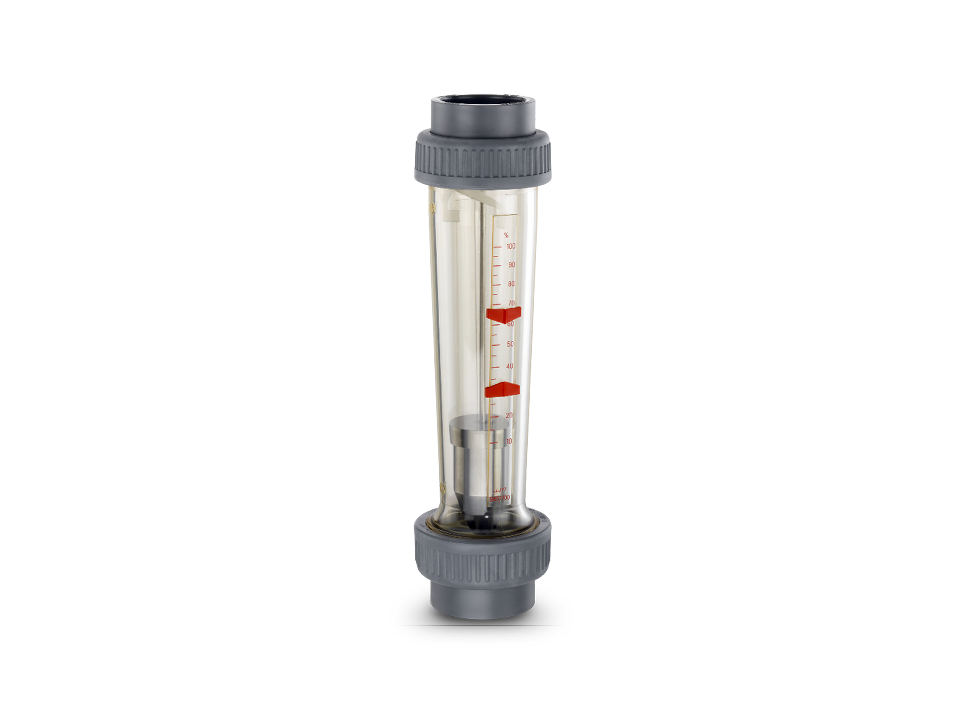

Compact flow meter with transparent scale and red float for precise flow measurement – ideal for industrial applications with liquids.

Flexibly configurable flow meter with guided stainless steel float

Product information

​The GEMÜ 800 flowmeter operates according to the variable area principle and has a transparent metering tube. The scale printed onto the metering tube is suited to the medium. Dovetail sections moulded onto the metering tube allow for easy mounting of adjustable visual flow indicators, limit switches and a continuous readout transmitter.

Key features

  • Good level of accuracy, simple operation
  • Clear and large size printed scale
  • ATEX version available as an option
  • Over 500 standard scales and 13,000 special scales are available with further scales on request
  • Corrosion-resistant plastic parts
Compact flow meter with transparent scale and red float for precise flow measurement – ideal for industrial applications with liquids.

Technical features

Parameters
Value
Connection types
Flange
Spigot
Union end
Measuring range - Liquids
0,5 to 33000 l/h
Error of measurement
± 1% of final value and ± 3% of measured value
Media temperature
-20 to 120 °C
Operating pressure
0 to 15 bar
Nominal sizes
DN 20 to 65
Metering tube materials
PA, transparent
PSU
PVC-U, transparent
Float materials
1.4571 (316 Ti)
Conformities
ATEX
FDA
