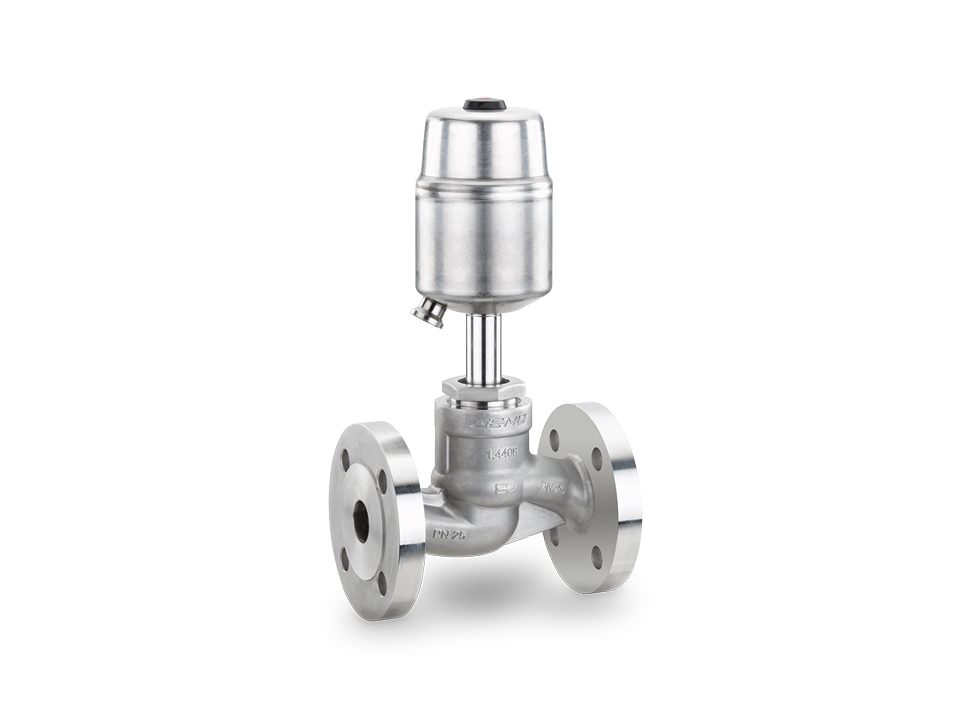

Pneumatic 2/2-way metal globe valve

GEMÜ 530

Configure
Seat valve with stainless steel housing, flange connections, and pneumatic actuator for industrial applications for flow control.

Globe valve with high-quality stainless steel actuator

Product information

The 2/2-way globe valve GEMÜ 530 has a robust, low-maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing also protects the seal against contamination and damage.

Key features

  • Stainless steel actuator resistant to corrosive ambient conditions
  • For contact with food in accordance with Regulation (EC) No. 1935/2004
  • Extended temperature and pressure range
  • Precise actuator design depends on operating pressure
  • ATEX optionally available
  • Suitable for shut-off and control functions
  • Suitable for vacuum up to 20 mbar (a) as standard
Seat valve with stainless steel housing, flange connections, and pneumatic actuator for industrial applications for flow control.

Technical details

Parameters
Value
Media temperature
-40 to 210 °C
Ambient temperature
-20 to 60 °C
Operating pressure
0 to 40 bar
Nominal sizes
DN 15 to 100
Body configurations
2/2-way bodies
Connection types
Flange
Connection standards
ANSI
ASME
EN
ISO
JIS
Body materials
1.4408, investment casting material
EN-GJS-400-18-LT (GGG 40.3)
Seat seal materials
1.4404
PTFE
PTFE, reinforced
Conformities
ATEX
CRN
EAC
FDA
FMEDA
Oxygen
Regulation (EC) No. 1935/2004
Regulation (EU) No. 10/2011
RoHS
TA Luft (German Clean Air Act)

Downloads

16 Results
  • Technical information GEMÜ 514, 530, 532, 534, 550, 554

    pdf (222 KB) -
    EN

  • Montageanleitung / Assembly instructions GEMÜ 514, 530, 532, 534, 550, 554

    pdf (802 KB) -
    DE/EN

  • Product brochure Actuator replacement for globe valves

    pdf (288 KB) -
    EN

  • Technical information GEMÜ 514, 550, 554, 530, 532, 534 valves overview

    pdf (328 KB) -
    EN

  • Validation guide GEMÜ 312, 314, 343, 352, 354, 505, 507, 514, 519, 522, 529, 530, 532, 533, 534, 536, 537, 539, 543, 549, 550, 553, 554, 555, 565, 566, N560, N570, R563, S40, S560

    pdf (3 MB) -
    EN

  • Product-certificate-TA-Luft-gemue-globe-valves-gb-2025-12-09

    pdf (105 KB) -
    EN

  • Product certificate ADI - GEMÜ globe valve collection

    pdf (140 KB) -
    DE/EN

  • Specification_sheet_seat-_ and_globe_valves_en.

    pdf (1 MB) -
    EN

  • Product certificate O2 - GEMÜ globe valve collection

    pdf (62 KB) -
    DE/EN/FR

  • Montageanleitung / Assembly instructions GEMÜ 530, 550

    pdf (595 KB) -
    DE/EN

  • Functional safety FMEDA - GEMÜ 3XX, 5XX, S40

    pdf (507 KB) -
    EN

  • Product certificate TA-Luft - GEMÜ globe valve collection

    pdf (29 KB) -
    EN
