Pneumatic or motorized control valve with metal body

GEMÜ 566

ConfigureTechnical data sheet

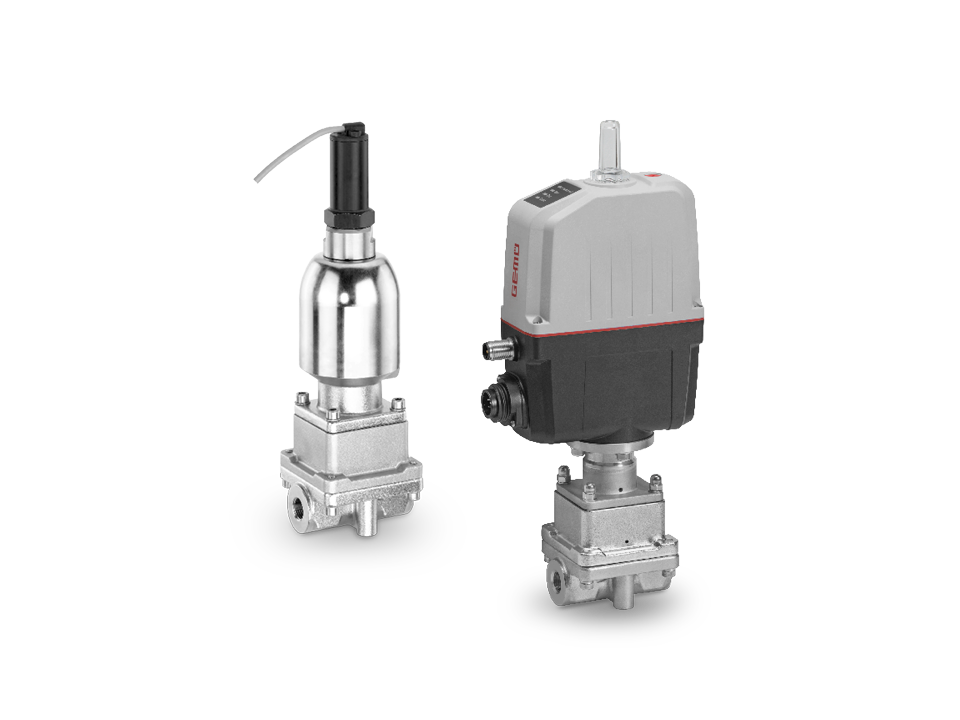

Two industrial globe valves – left: pneumatic with stainless steel actuator, right: electric with compact control actuator – for precise flow control in piping systems.

Compact valve with flexible actuator selection for controlling small quantities

Product information

The GEMÜ 566 eSyStep 2/2-way straight globe control valve has a body with an integrated control mechanism. Pneumatic and motorized actuator types are available. The GEMÜ 566 eSyStep control valve was specially developed for controlling small volumes and allows flow rates from 63 l/h to 2500 l/h.

Key features

  • Kvs values from 63 to 2500 l/h possible
  • Linear or equal-percentage control characteristic options
  • Hermetic separation between medium and actuator
  • Actuator and actuator type can be changed without draining or removing the valve body from the piping
  • Various types of actuators available
Two industrial globe valves – left: pneumatic with stainless steel actuator, right: electric with compact control actuator – for precise flow control in piping systems.

Technical details

Parameters
Value
Media temperature
0 to 90 °C
Ambient temperature
-15 to 60 °C
Operating pressure
0 to 6 bar
Nominal sizes
DN 8 to 20
Body configurations
2/2-way bodies
Connection types
Clamp
Thread
Body materials
ASTM A351 CF3M
Seat seal materials
EPDM
FKM
Conformities
EAC
FDA
RoHS
Supply voltage
24 V DC
Actuating speed
Max. 3 mm/s
Protection class
IP65

Downloads

9 Results
  • Operating instructions GEMÜ 566 E

    pdf (6 MB) -
    EN

  • Datasheet GEMÜ 566 E

    pdf (5 MB) -
    EN

  • Product certificate RoHS - GEMÜ product collection

    pdf (305 KB) -
    DE/EN

  • Validation guide GEMÜ 312, 314, 343, 352, 354, 505, 507, 514, 519, 522, 529, 530, 532, 533, 534, 536, 537, 539, 543, 549, 550, 553, 554, 555, 565, 566, N560, N570, R563, S40, S560

    pdf (3 MB) -
    EN

  • Betriebsanleitung / Operating instructions GEMÜ 566 E

    pdf (8 MB) -
    DE/EN

  • Operating instructions GEMÜ 566 P

    pdf (4 MB) -
    EN

  • Specification_sheet_seat-_ and_globe_valves_en.

    pdf (1 MB) -
    EN

  • Product certificate O2 - GEMÜ globe valve collection

    pdf (62 KB) -
    DE/EN/FR

  • Datasheet GEMÜ 566 P

    pdf (4 MB) -
    EN
