Pressure gauge with PTFE separating diaphragm

GEMÜ C33

Technical data sheet

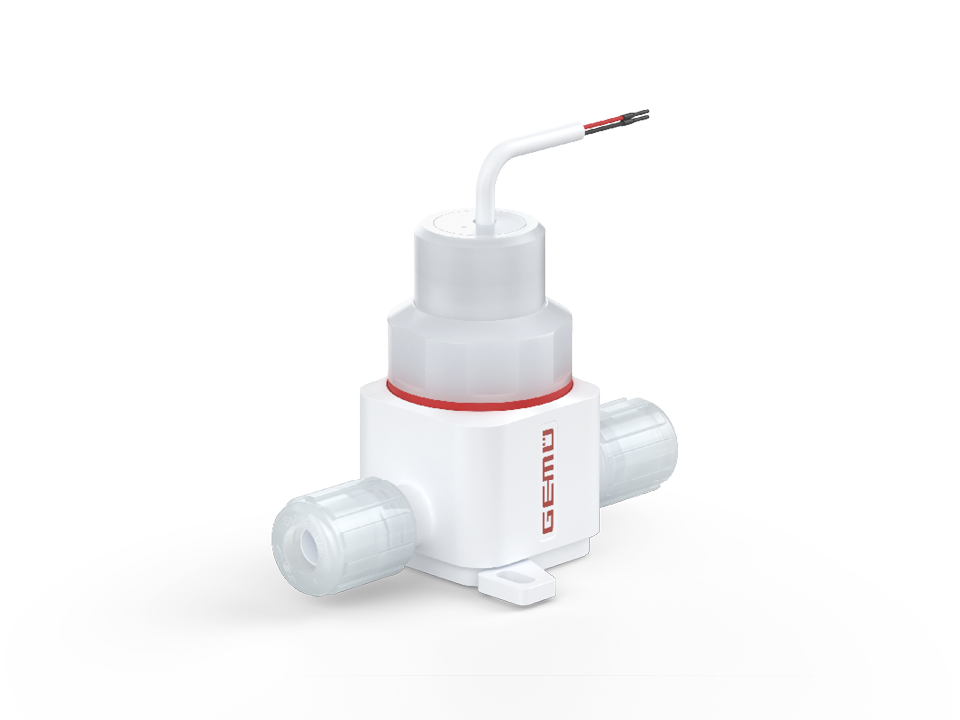

White GEMÜ pressure and temperature measuring device with sensor cable, suitable for high-purity applications and aggressive media in the chemical industry.

High-purity pressure gauge with hermetically sealed ceramic measuring cell

Product information

The GEMÜ C33 HydraLine electronic pressure gauge comprises a PTFE body and a housing made of PTFE, PVDF and FKM. It has a ceramic pressure measurement cell which is separated from the process medium by an innovative new sealing concept. This means the process medium only comes into contact with PTFE. The GEMÜ C33 HydraLine has a leak detection hole for easy leakage detection and can be integrated directly into the piping system via flare unions.

Key features

  • Membrane is an integral part of the sensor envelope
  • Non-metallic ultra pure ceramic sensor
  • Media wetted area made exclusively of PTFE
  • Plastic housing for aggressive ambient conditions
  • Production, assembly, calibration and packaging in cleanroom ISO 6
White GEMÜ pressure and temperature measuring device with sensor cable, suitable for high-purity applications and aggressive media in the chemical industry.

Technical features

Parameters
Value
Measuring range
0 Up to 6 bar Or 0 Up to 100 psi; for further measuring ranges, see Range overview
Error of measurement
± 1 % of final value ; for further error of measurements, see Range overview
Input signals
4–20 mA
Media temperature
0 to 80 °C
Ambient temperature
0 to 60 °C
Body materials
PTFE
Connection type
Flare
Nexus Connect®

Downloads

7 Results
  • Betriebsanleitung GEMÜ C33 HydraLine C33

    pdf, 3.13 MB, DE

  • Operating instructions GEMÜ C33 HydraLine C33

    pdf, 1.60 MB, EN

  • Notice d'utilisation GEMÜ C33 HydraLine C33

    pdf, 1.62 MB, FR

  • Datenblatt GEMÜ C33 HydraLine C33

    pdf, 295 KB, DE

  • Datasheet GEMÜ C33 HydraLine C33

    pdf, 295 KB, EN

  • Betriebsanleitung / Operating instructions GEMÜ C33 HydraLine C33

    pdf, 3.96 MB, DE, EN

  • Fiche technique GEMÜ C33 HydraLine C33

    pdf, 296 KB, FR
