Microprocessor-controlled valve control

GEMÜ 4242

ConfigureTechnical data sheet

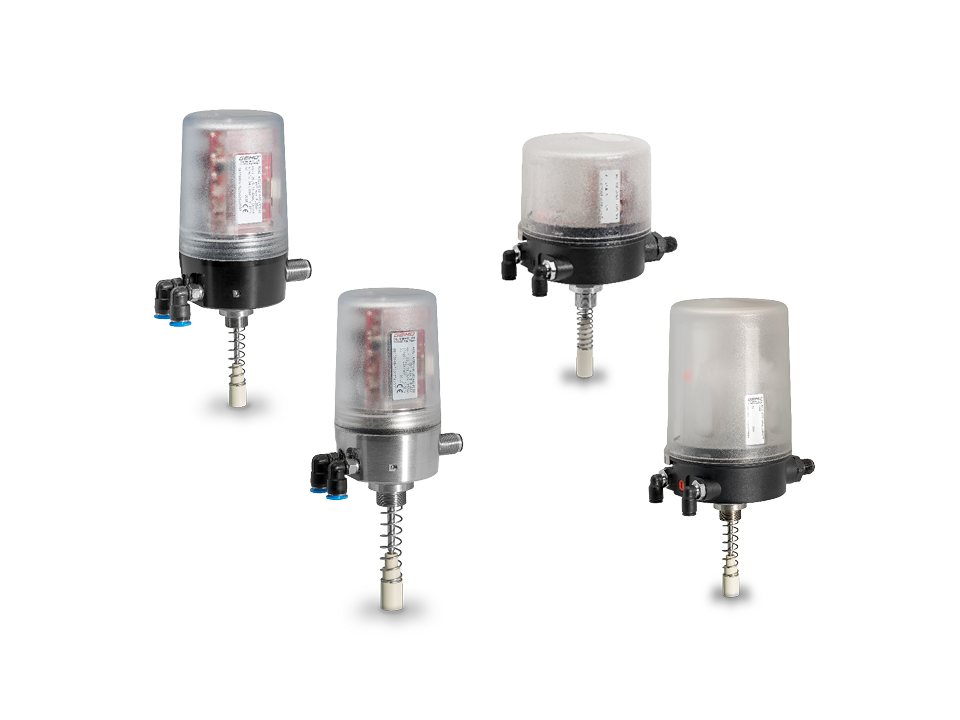

Compact position feedback device with translucent cover, actuating rod, and side connections for precise valve monitoring in industrial applications.

Universal valve activation with wide-angle LEDs

Product information

The GEMÜ 4242 combi switchbox is suitable for installation on pneumatically operated linear actuators. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Integrated pilot valves enable direct activation of the process valve connected to them. Intelligent microprocessor-controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals.

Key features

  • Fieldbus connection AS-Interface (3.0), ASi-5 and DeviceNet (optional)
  • Communication and programming interface IO-Link
  • Adjustable switch point tolerances
  • Speed-AP function for fast mounting and initialization
  • High visibility position indicator by LED
  • On-site or remote end position programming via programming input
  • Integrated manual override
Compact position feedback device with translucent cover, actuating rod, and side connections for precise valve monitoring in industrial applications.

Technical details

Parameters
Value
Ambient temperature
0 to 60 °C
Linear measuring range
2 to 75 mm
Flow rate
14 Nl/min
145 Nl/min
23 Nl/min
250 Nl/min
Supply voltage
24 V DC
or as per fieldbus specification
Mode of action
Double acting
Single acting
Communication modes
ASi-5
AS-Interface
DeviceNet
IO-Link
Electrical connection types
M12 plug
Protection class
IP 65, IP 67
Conformities
ATEX
ETL Listed C US
FCC
FMEDA
IECEx
UL listed
