Pneumatic 2/2-way metal ball valve

GEMÜ B44

ConfigureTechnical data sheet

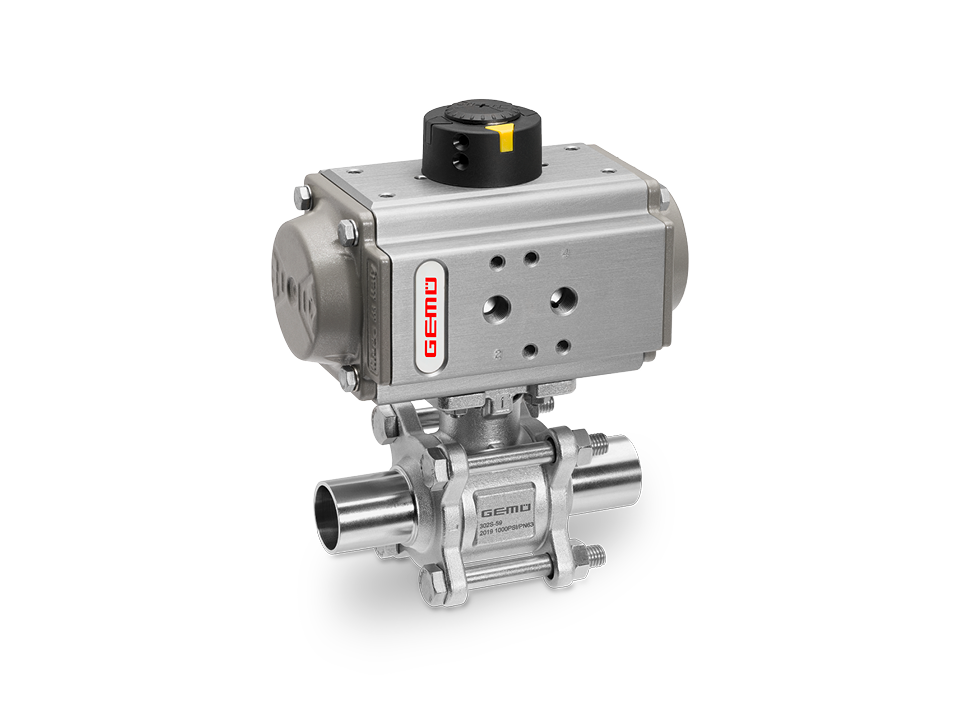

Pneumatically operated stainless steel ball valve with welded ends and position indicator – ideal for the chemical, pharmaceutical, and food industries.

Sanitary ball valve for hygienic applications

Product information

The GEMÜ B44 3-piece 2/2-way ball valve is pneumatically operated. The 1.4435 stainless steel alloy used for the ball valve body (material composition equivalent to 316L), with a low delta ferrite content of < 3 %, is particularly suitable for applications in the supply sector for the pharmaceutical, food processing and biotechnology industries. Only plastics compliant with FDA, USP Class VI and Regulation (EU) No. 10/2011 are used for the seals.

Key features

  • Checked delta ferrite material < 3% (1.4435)
  • Material certificates for media wetted components
  • Wetted surfaces e-polished (Ra 0.51 µm)
  • Ball valve body, assembled free of oil/grease
  • Comprehensive drive selection
  • Butt weld spigots in extended orbital welding design
  • Optionally available with cavity-filled seat
Pneumatically operated stainless steel ball valve with welded ends and position indicator – ideal for the chemical, pharmaceutical, and food industries.

Technical details

Parameters
Value
Media temperature
-10 to 220 °C
Ambient temperature
-20 to 60 °C
Operating pressure
0 up to 63 bar
Nominal sizes
DN 8 to 100
Body configurations
2/2-way bodies
Connection type
Clamp
Spigot
Connection standards
ASME
DIN
ISO
SMS
Body materials
1.4435 (316L), investment casting material
Seal materials
PTFE
Conformities
ATEX
EAC
FDA
Regulation (EC) No. 1935/2004
Regulation (EU) No. 10/2011
TA Luft (German Clean Air Act)
USP
