Pneumatic 2/2-way diaphragm globe valve,Pneumatic 2/2-way diaphragm globe valve

GEMÜ C50 iComLine

ConfigureTechnical data sheet

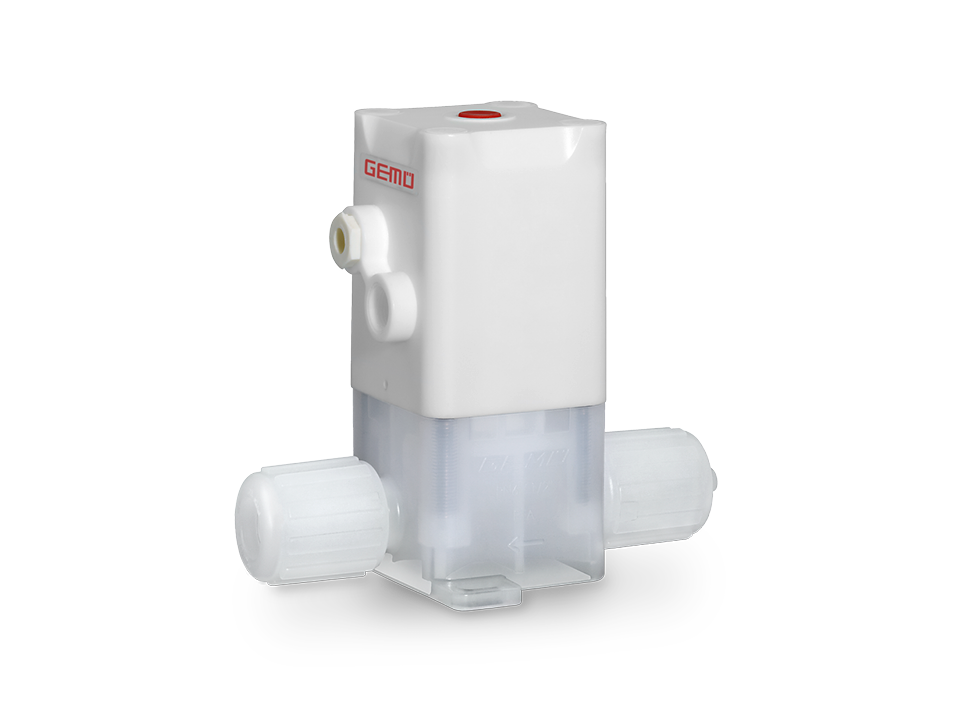

Pneumatically operated diaphragm seat valve made of plastic for high-purity and corrosive media in the semiconductor and chemical industries.

High-purity, compact PFA/PTFE valve for handling critical media,High-purity, compact PFA/PTFE valve for handling critical media

Product information

The high-purity 2/2-way plastic GEMÜ C50 iComLine diaphragm globe valve has a pneumatic actuator. All media wetted parts are made of PFA or PTFE. The external actuator parts are made of PVDF. An integral optical position indicator is standard. In addition to 2/2-way valve bodies, customized multi-port valve block solutions can be produced.","The high-purity 2/2-way plastic GEMÜ C50 iComLine diaphragm globe valve has a pneumatic actuator. All media wetted parts are made of PFA or PTFE. The external actuator parts are made of PVDF. An integral optical position indicator is standard. In addition to 2/2-way valve bodies, customized multi-port valve block solutions can be produced.

Key features

  • Low space requirement due to compact design
  • Integration in space-saving multi-port valve block solutions
  • Clean room production, fulfils SEMI F57
  • Ideally suited for corrosive media
  • Choice of design with PTFE-coated screws and compression springs
Pneumatically operated diaphragm seat valve made of plastic for high-purity and corrosive media in the semiconductor and chemical industries.

Technical features

Parameters
Value
Media temperature
-10 to 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 6 bar
Nominal sizes
DN 4 to 25
Body configurations
2/2-way body
Multi-port body
Connection types
Flare
Nexus Connect®
PrimeLock®
Super 300 Type Pillar®
Body materials
PFA
PTFE
Seal materials
PTFE
