Pneumatic 2/2-way diaphragm valve made of high-purity plastic

GEMÜ C60 CleanStar

ConfigureTechnical data sheet

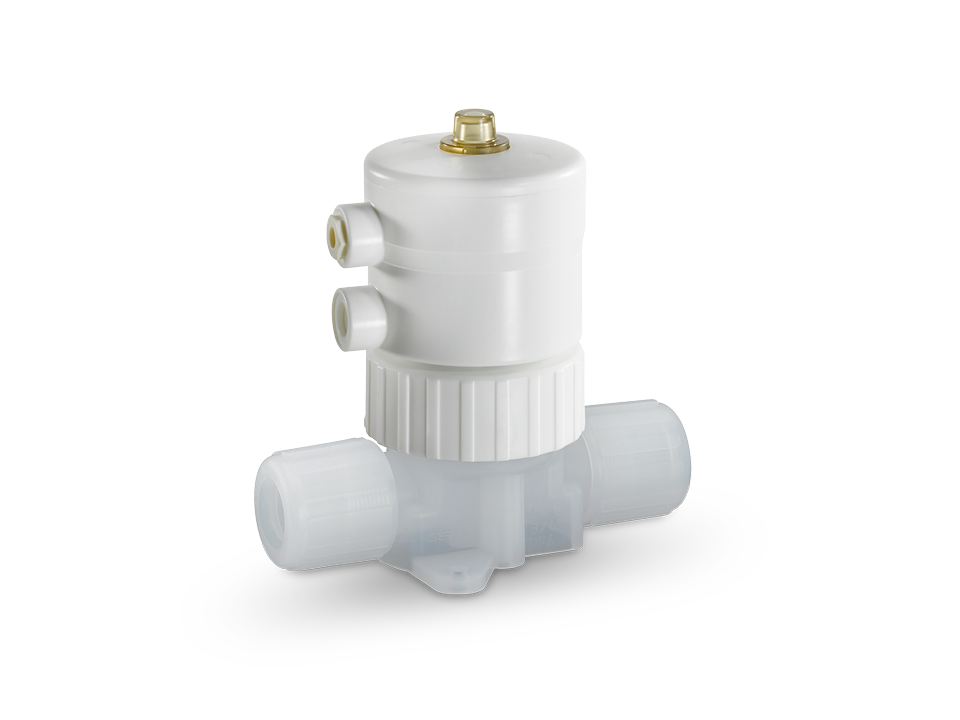

Pneumatic diaphragm valve made of high-purity plastic with clamp connections – ideal for the semiconductor industry, chemical process engineering, and water treatment.

Valve with high chemical resistance for the highest purity standards

Product information

The GEMÜ C60 CleanStar® ultra pure 2/2-way diaphragm valve has a plastic piston actuator and is pneumatically operated. A stroke limiter (not with actuator size 4) and an optical position indicator are integrated as standard. All media wetted parts are made of PFA or PTFE. This High Purity version of the CleanStar® series complies with the strictest purity standards and boasts high chemical resistance. It can also be used with high media temperatures. As such, it is often used at the supply and distribution level in semiconductor factories.

Key features

  • All wetted parts made of PFA or PTFE
  • High flow rate with low-stress media channelling
  • Optional flow direction
  • Long service life based on test results and field experience
  • Ideally suited for corrosive media
  • Optional version with ECTFE union nut and/or with PFA-coated compression springs
  • Also available as T valve
  • Clean room production, fulfils SEMI F57
Pneumatic diaphragm valve made of high-purity plastic with clamp connections – ideal for the semiconductor industry, chemical process engineering, and water treatment.

Technical features

Parameters
Value
Media temperature
-10 to 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 6 bar
Nominal sizes
DN 4 to 50
Body configurations
2/2-way body
T-body
V valve body
Connection types
Flare
Flare SpaceSaver
Nexus Connect® SpaceSaver
PrimeLock®
PrimeLock® SpaceSaver
Spigot
Super 300 Type Pillar® SpaceSaver
Union end
Welded-on Nexus Connect®
Connection standards
DIN
Body materials
PFA
PP-R, natural
PVDF
Diaphragm materials
PTFE/EPDM
Conformities
EAC
FDA
TA Luft (German Clean Air Act)
