Position feedback devices and valve connections

Our position indicators offer reliable monitoring for automated processes with high safety requirements. They recognise precise valve positions and send the data to the control system - for more control, safety and fewer errors. Integrated pilot valves also increase efficiency.

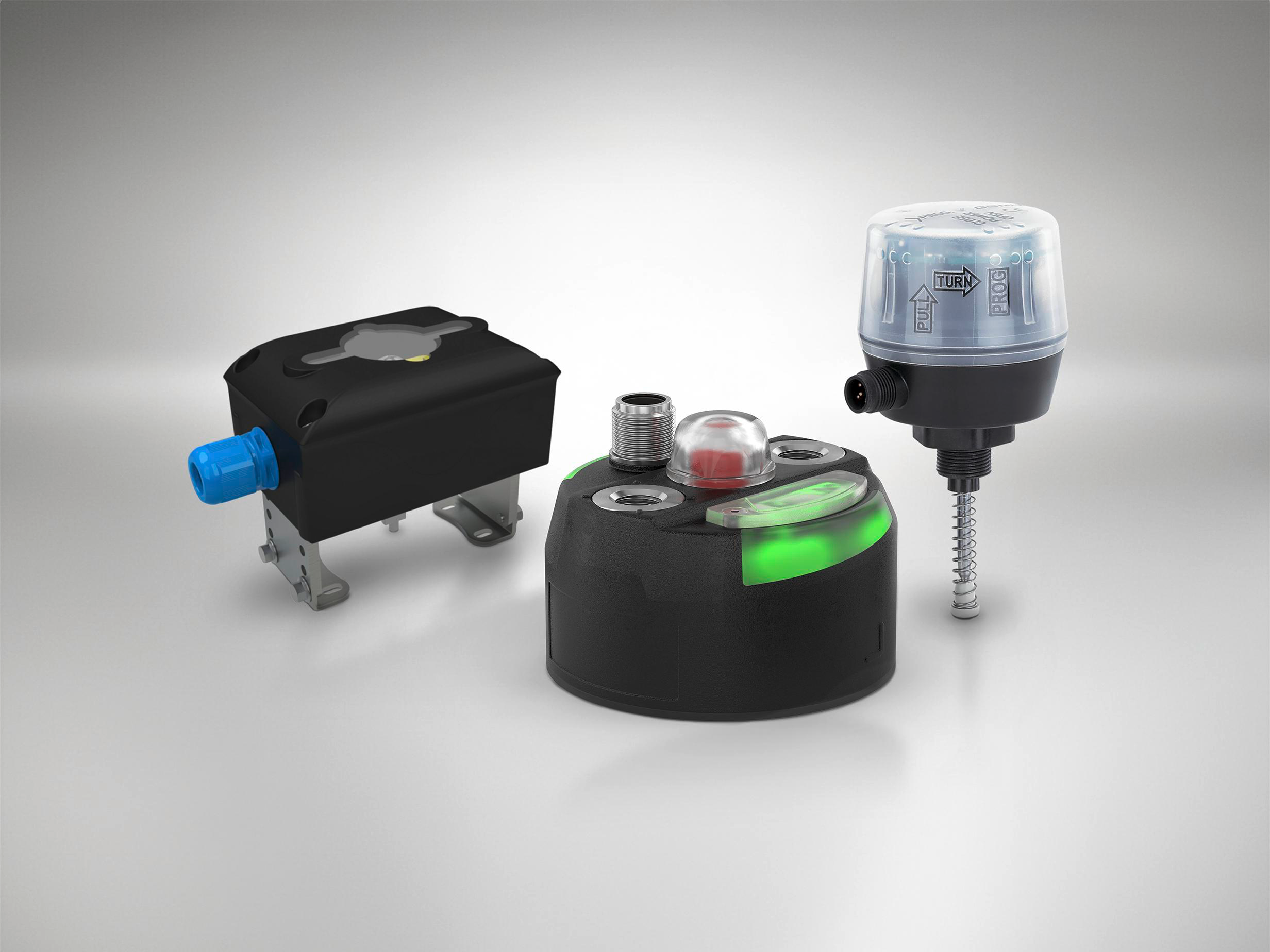

Three GEMÜ components for feedback and control of valve positions.
  • Position feedback device with transparent cover, grounding cable, and actuating rod for precise valve monitoring in industrial applications.

    Electrical position indicator with inductive proximity switch

    GEMÜ 1231

    Compact position indicator for use in explosion-protected areas

    • Wear-free position feedback via 2-wire proximity switch (NAMUR)
    • Adjustable switch point tolerances via threaded spindle
    • Explosion protection for zone 1 and 21

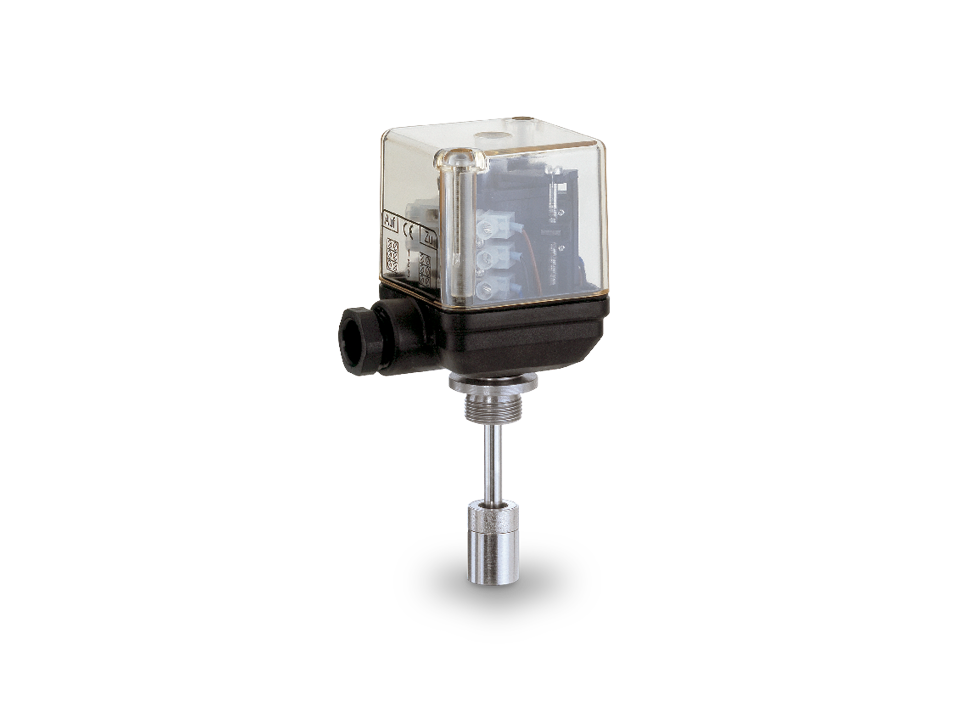

  • Position indicator with transparent cover, side cable connection, and guided actuating rod for precise valve monitoring in industrial applications.

    Electrical position indicator with inductive proximity switch

    GEMÜ 1232

    Compact position indicator for OPEN/CLOSE feedback signals

    • Wear-free position feedback via 2-wire proximity switch (NAMUR) or 3-wire proximity switch (PNP)
    • With optional LED end position signalling
    • Adjustable switch point tolerances via threaded spindle
    • UL approval available

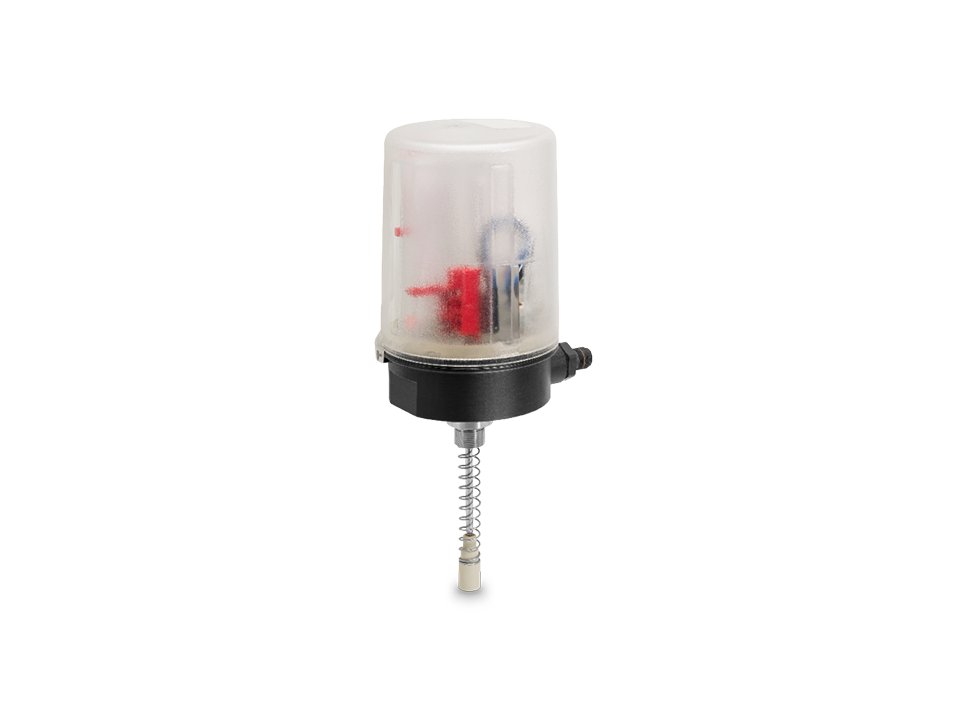

  • Valve connection with translucent cover, side connection, and actuating rod for precise automation of industrial valve systems.

    Electrical position indicator with inductive proximity switch

    GEMÜ 1241

    Position indicators for use in explosion-protected areas

    • Position feedback via 2-wire proximity switch (NAMUR)
    • Adjustable switch point tolerances using locking levers
    • Can be fitted to GEMÜ valves or third-party actuators
    • Explosion protection for zone 1 and 21

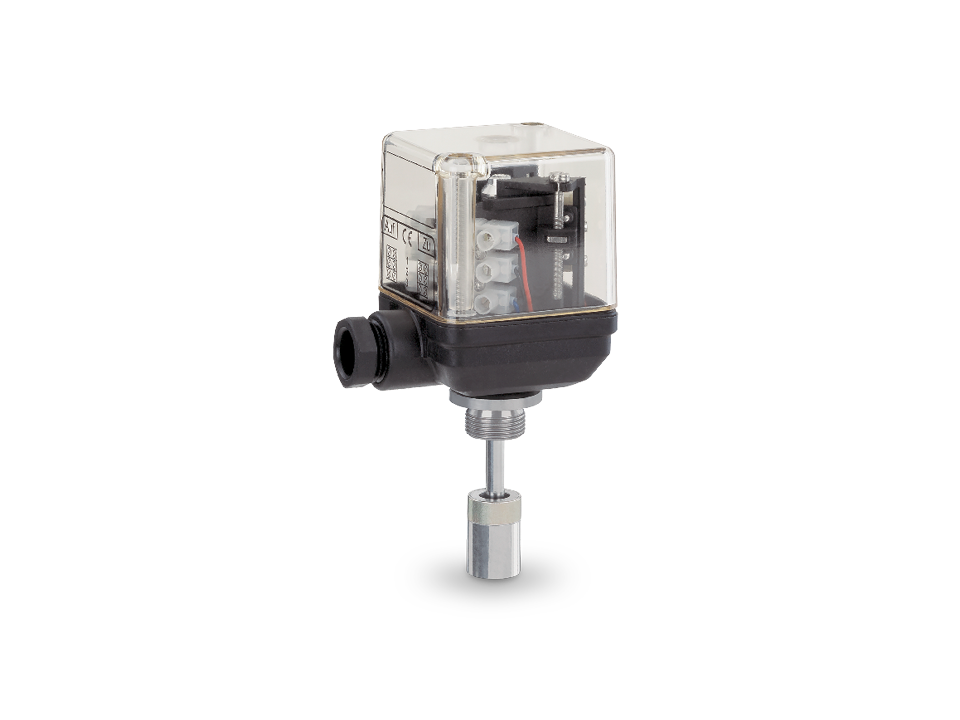

  • Position indicator with transparent cover, side cable connection, and actuating rod for precise valve monitoring in industrial applications.

    Electrical position indicator with microswitch

    GEMÜ 1230

    Compact position indicator for OPEN/CLOSE feedback signals

    • Position feedback via microswitch
    • Optionally with LED end position signalling
    • Adjustable switch point tolerances via threaded spindle
    • UL approval available

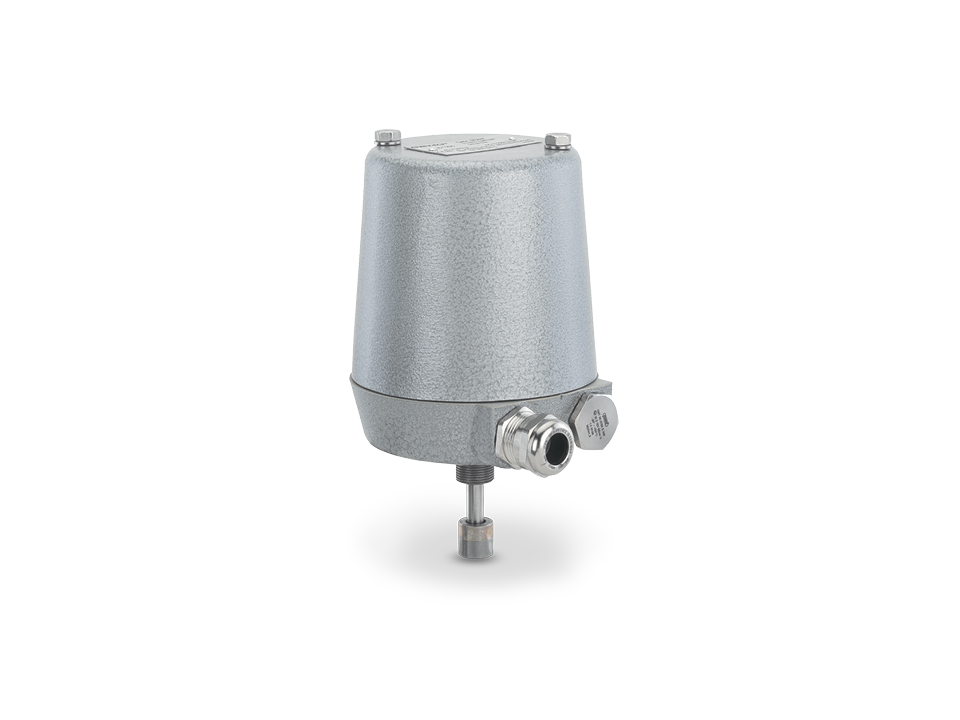

  • Robust position indicator with metal-coated housing and actuating rod for use in demanding industrial applications.

    Electrical position indicator with microswitch

    GEMÜ 1205

    Position indicator for the explosion-protected area Zone 1

    • Sturdy aluminium housing with pressure-resistant encapsulation
    • Compact, solid aluminium housing
    • Adjustable switch point tolerances

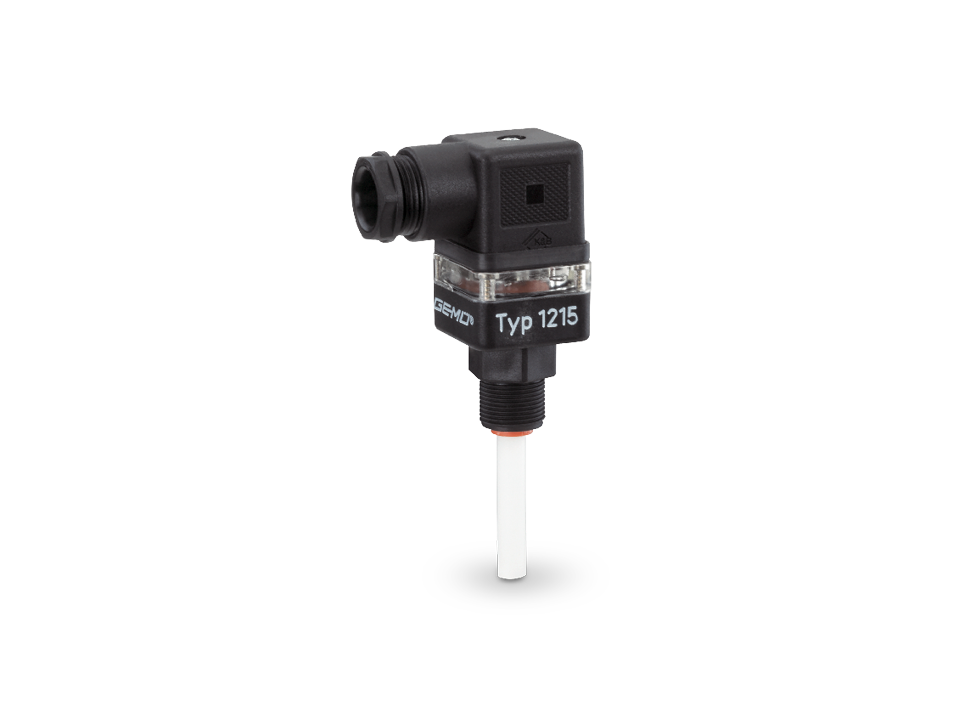

  • Compact position indicator type 1215 with LED display and actuating rod for precise valve monitoring in industrial applications.

    Electrical position indicator with microswitch

    GEMÜ 1215

    Compact position indicator for basic requirements

    • Electrical position feedback with additional visual position indicator
    • Position feedback via microswitch
    • The housing can be rotated through 360°
  • Valve connection with translucent cover, side connection, and actuating rod for precise automation of industrial valve systems.

    Electrical position indicator with microswitch or inductive proximity switch

    GEMÜ 1240

    Robust position indicator for actuators with longer stroke

    • Suitable for a valve stroke of up to 75 mm
    • Position feedback via microswitches, optionally via 2-wire NAMUR proximity switches or 3-wire proximity switches
    • Adjustable switch point tolerances using locking levers

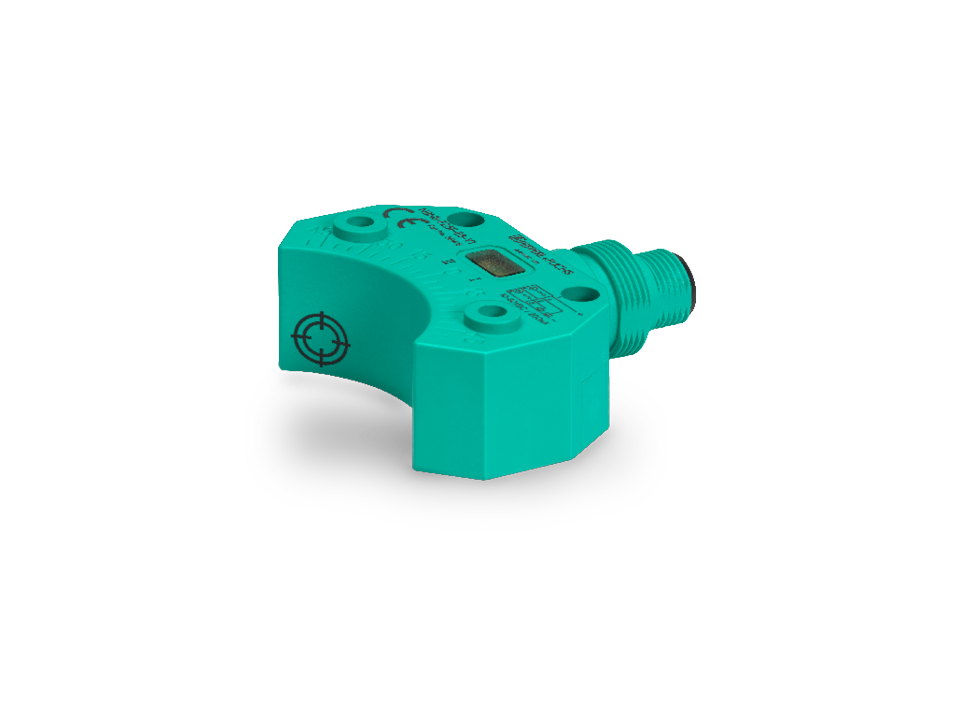

  • Curved proximity sensor with green plastic housing, LED status indicator, and threaded connection for valve position monitoring in industrial applications.

    Inductive position indicator for quarter-turn valves

    GEMÜ LSF

    Position feedback via inductive double sensors

    • Simple mounting and retrofitting to quarter turn actuators
    • Compact, solid housing
    • Can be attached to all quarter turn valves in accordance with the VDI/VDE 3845 standard interface
    • With LED display
