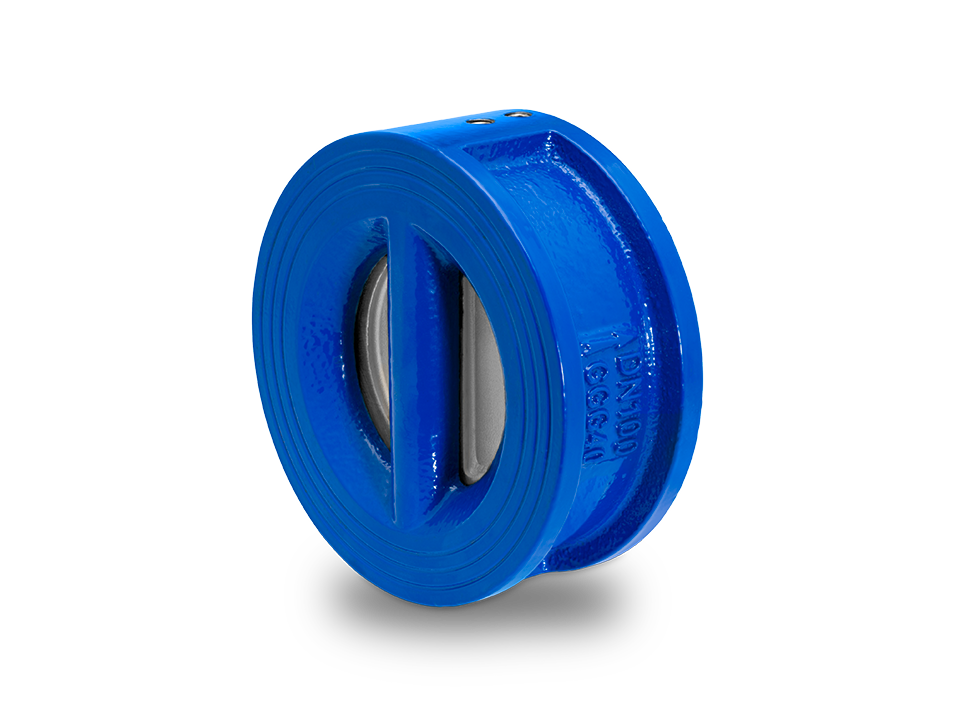

Metal non-return valve
GEMÜ R91
Do you have any questions? Start a conversation.
Non-return valve in double wing design
Product information
The GEMÜ R91 is a metal dual plate check valve with flange connection and standardized length to DIN EN 558-1. The valve body, plates and seals are available in various materials. In the version with metallic seal, the GEMÜ R91 valve can be used at high temperatures up to 300 °C.
Key features
- Suitable for low and high temperatures
- Standardized length to DIN EN 558-1, series 16
- Available as option free of oil and grease
- Drip and bubble-tight to EN 12266-1/P12, leakage rate A to G
Technical features
Parameters
Value
Media temperature
-200 to 300 °C
Operating pressure
0 to 16 bar
Nominal sizes
DN 50 to 600
Connection types
Flange
Connection standards
ANSI
ASME
EN
Body materials
1.0619, galvanized cast steel material
1.4408, investment casting material
EN-GJS-400-15
Seal materials
EPDM
FKM
NBR
Spring materials
1.4571, spring steel
Conformities
EAC
WRAS
Plate material
1.4408, investment casting material
1.4469, duplex cast steel material
EN-GJS-400-15, SG iron material
Downloads
16 Results
- Fiche technique GEMÜ R91
- Operating instructions GEMÜ R91
- Datablad GEMÜ R91
- Notice d'utilisation GEMÜ R91
- Datenblatt GEMÜ R91
- Datasheet GEMÜ R91
- Användarhandbok GEMÜ R91
- Declaration of Conformity FDA, KTW, DVGW-W, WRAS, NSF, USP, ADI - GEMÜ R90, R91, RSK, ZRSK EPDM o-rings
- Declaration of Conformity WRAS - GEMÜ R91
- Руководство по эксплуатации GEMÜ R91
- Declaration of Conformity ATEX - GEMÜ R90, R91, RSK, ZRSK
- Betriebsanleitung / Operating instructions GEMÜ R91
