550 32D6037 513G1

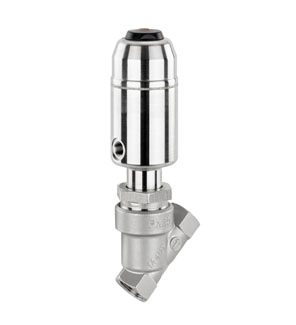

Angle seat globe valve, pneu.

Item number:		88246889
Description

Type	550	Angle seat globe valve, pneumatically operated, stainless steel piston actuator
DN	32	DN 32
Body configuration	D	2/2-way body
Connection type	60	Spigot ISO 1127 / EN 10357 series C
Valve body material	37	1.4408, investment casting
Seat seal	5	PTFE
Control function	1	Normally closed (NC)
Actuator version	3G1	Actuator size 3G1

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 550 2/2-way angle seat globe valve has a low-maintenance stainless steel piston actuator and is pneumatically operated. The valve spindle is sealed by a self-adjusting gland packing providing low-maintenance and reliable valve spindle sealing even after a long service life. A wiper ring fitted in front of the gland packing protects the seal against contamination and damage.

Suitable for shut-off and control functions for gaseous, liquid and viscous media
Suitable for vacuum up to 20 mbar (a)
Wide range of adaptation options for add-on components and accessories
Free from non-ferrous metals
Optional for food contact according to Regulation (EC) No. 1935/2004
Particularly compact design, actuator size 0G1/0M1
