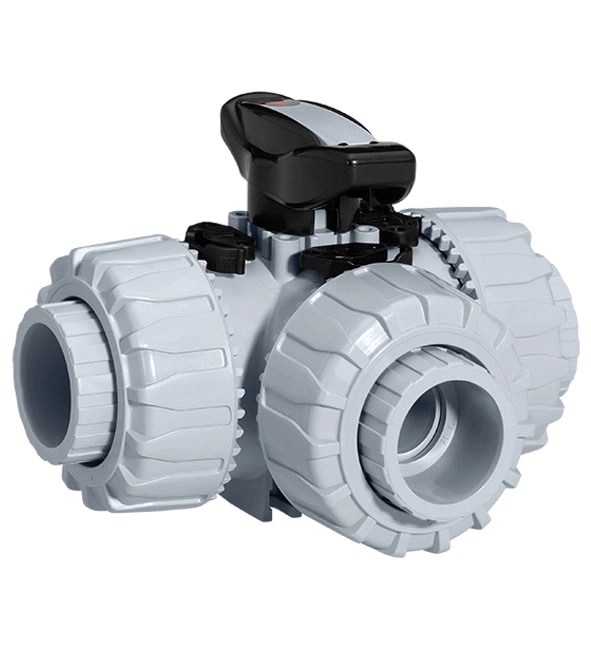

717 50M3M 2140 T

Ball valve, manual 3/2-way

Item number:		88601116
Description

Type	717	Ball valve, plastic, manually operated
DN	50	DN 50
Body configuration	M	Multi-port version
Connection type	3M	Union end with inch insert - ASTM (socket)
Ball valve material	2	PVC-C, chlorinated polyvinyl chloride
Liner material	14	EPDM
Control function	0	manually operated
Ball configur./port position	T	T-port, standard, end position "Open", connection 1, 2 and 3 open, T-port, standard, end position "Closed", connection 1 and 3 open

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 717 2/2 or 3/2-way plastic ball valve has an ergonomically designed hand lever and is manually operated. The seat seal is made from PTFE and the O-ring seals can be made from either EPDM or FKM.

High flow rates
Low weight
Choice of various body materials and connection types
Union nut with integrated spin-lock
2/2 and 3/2-way versions available
Optionally available with control ball
