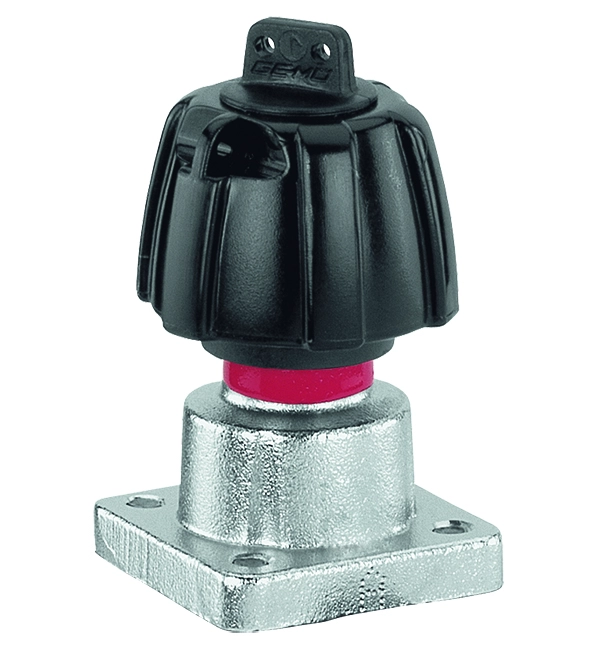

9601 8M A00TS-C

Operator diaphragm valve, man.

Item number:		88569090
Description

Type	9601	Plastic operator
Diaphragm size	8	Diaphragm size 8
Operator use	M	For Body Configuration B, M and T
Diaphragm material	A	For diaphragm size 8
Control function	0	manually operated
Actuator version	0TS	With seal adjuster, black handwheel
CONEXO	C	Integrated RFID chip for electronic identification and traceability

Request a quotation now
