R677 40D3975560 HD

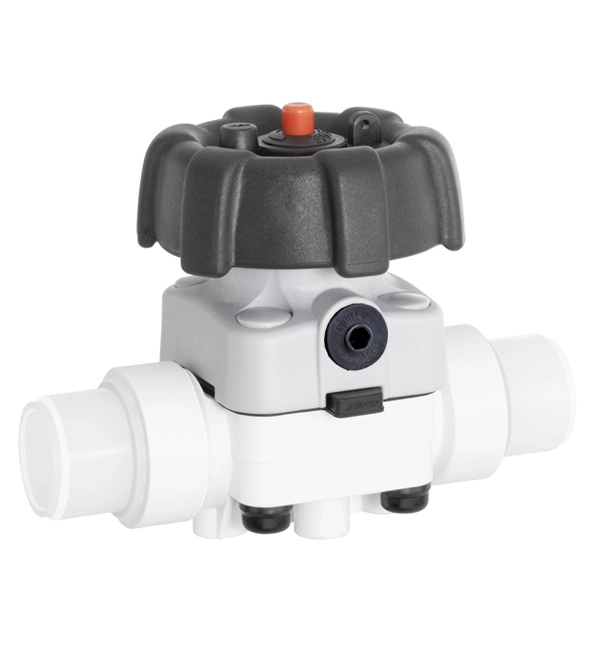

Diaphragm valve, manual

Item number:		88865721
Description

Type	R677	Diaphragm valve, manually operated, plastic handwheel, optical position indicator
DN	40	DN 40
Body configuration	D	2/2-way body
Connection type	39	Flanges ANSI Class 125/150 RF, Face to face EN 558, series 1, ISO 5752, basic series 1
Valve body material	75	Inliner PVDF / outliner PP, reinforced
Diaphragm material	56	PTFE/FKM
Control function	0	manually operated
Actuator version	HD	Operator size HD (diaphragm size 40)
Diaphragm size	40	Diaphragm size 40
This article is listed as a Dual-Use-good according to Regulation EU 2021/821 under Control list No. 2B350g. If these goods are supplied to countries outside the EU, the relevant export restrictions apply.

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ R677 2/2-way diaphragm valve has a low maintenance plastic actuator and is manually operated. An integrated optical position indicator is standard. The high-flow valve body provides compact dimensions at high flow rates.

Same mounting height planes over multiple nominal sizes
Integral optical position indicator
Compact system design thanks to flow-optimized high-flow valve bodies
