Pneumatic 2/2-way diaphragm valve with metal body

GEMÜ 695

Configure

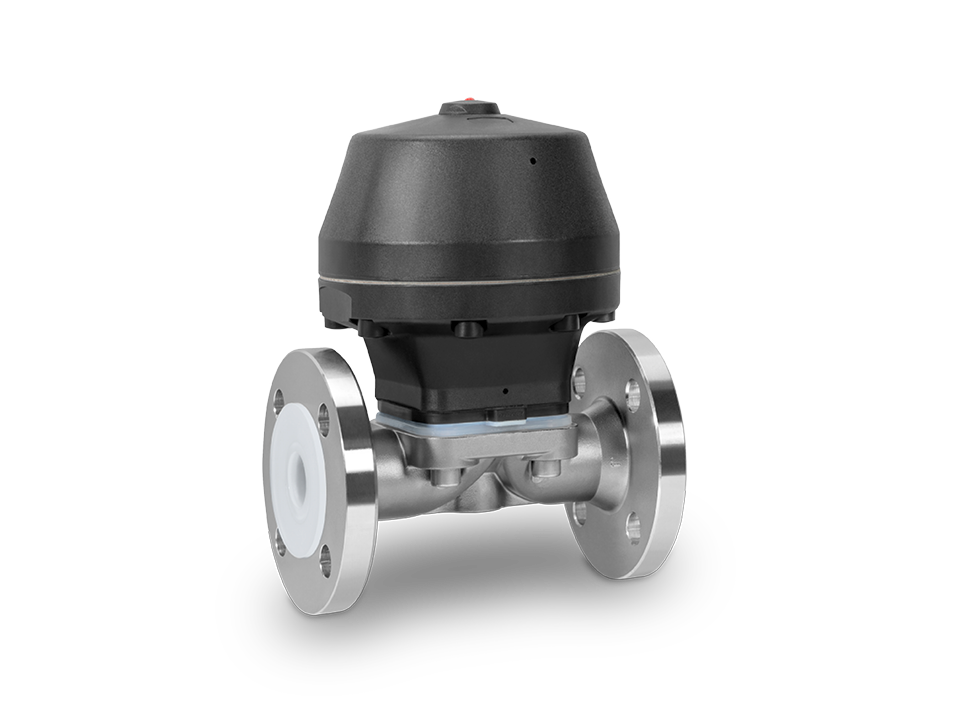

Pneumatically operated diaphragm valve with flange connections, stainless steel housing and PTFE lining – ideal for the chemical, pharmaceutical and food industries.

Compact valve with corrosion-resistant plastic diaphragm actuator

Product information

The GEMÜ 695 2/2-way diaphragm valve has a low-maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Key features

  • Suitable for corrosive environments
  • CIP/SIP capable
  • Wide range of adaptation options for add-on components and accessories
  • Suitable for particulate and abrasive media
Pneumatically operated diaphragm valve with flange connections, stainless steel housing and PTFE lining – ideal for the chemical, pharmaceutical and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 80 °C-14 to 176 °F
Ambient temperature
0 to 60 °C32 to 140 °F
Operating pressure
0 to 10 bar0 to 145 psi
Nominal sizes
DN 15 to 651/2" (DN 15) to 2 1/2" (DN 65)
Body configurations
2/2-way body
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
SMS
Connection types
Clamp
Flange
Spigot
Threaded connection
Clamp
Flange
Spigot
Threaded connection
Body materials
1.4408, investment casting material
1.4408, investment casting material, PFA lined
1.4435 (316L), forged material
1.4435 (BN2), forged material
1.4435, investment casting material
1.4539 (904L), forged material
EN-GJS-400-18-LT, SG iron material
EN-GJS-400-18-LT, SG iron material with butyl lining
EN-GJS-400-18-LT, SG iron material with hard rubber lining
EN-GJS-400-18-LT, SG iron material with soft rubber lining
EN-GJS-400-18-LT, SG iron material, PFA lined
EN-GJS-400-18-LT, SG iron material, PP lined
Diaphragm materials
EPDM
FKM
NBR
PTFE/EPDM
PTFE/FKM
Conformities
Belgaqua
EAC
FDA
Oxygen
TA Luft (German Clean Air Act)

Downloads

3 Results
  • Produktbroschüre Winkelgeber

    pdf, 195 KB, DE

  • Product brochure Angle gauge

    pdf, 195 KB, EN

  • Anwendungsbroschüre Elektropolieranlagen

    pdf, 756 KB, DE
