717 15M 2 5 4L 2

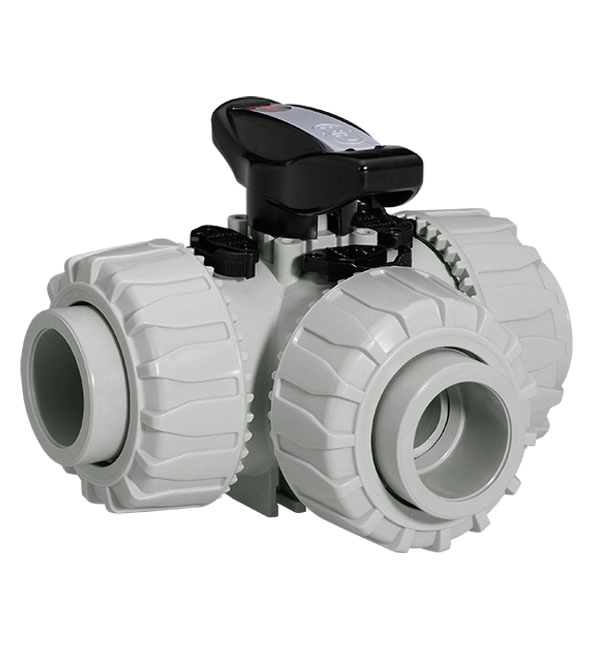

Ball valve, manual 3/2-way

Item number:		88881551
Description

Type	717	Ball valve, plastic, manually operated
DN	15	DN 15
Body configuration	M	Multi-port version
Connection type	2	Solvent cement or welded sockets (DIN)
Ball valve material	5	PP-H, grey
Seal material	4	FPM, maximum -15 °C - +210 °C
Control function	L	Manually operated, lockable hand lever
Ball configur./port position	2	T-port, end position "Open", connection 1 and 3 open, T-port, end position "Closed", connection 1 and 2 open

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 717 2/2 or 3/2-way plastic ball valve has an ergonomically designed hand lever and is manually operated. The seat seal is made from PTFE and the O-ring seals can be made from either EPDM or FKM.

High flow rates
Low weight
Choice of various body materials and connection types
Union nut with integrated spin-lock
2/2 and 3/2-way versions available
Optionally available with control ball
