428 15D 13714C1 A0 3015

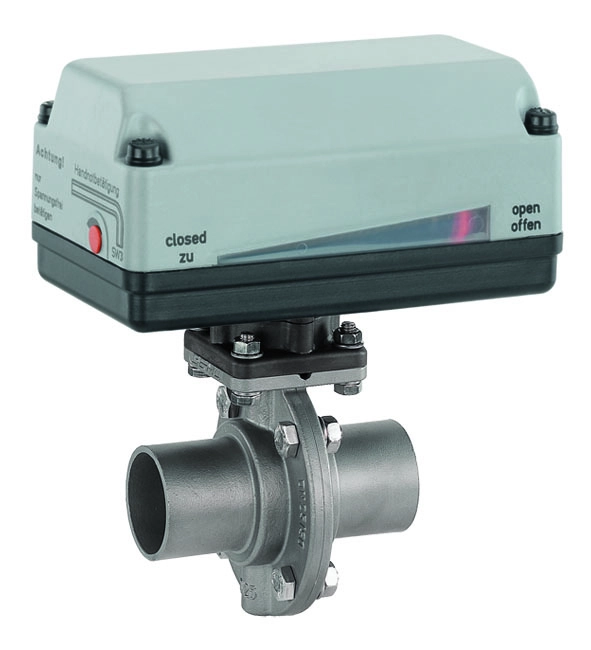

Butterfly valve, motorized

Item number:		88884315
Description

Type	428	Butterfly valve, motorized
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	1	Threaded sockets DIN ISO 228
Body material	37	1.4408, investment casting
Shut-off seal material	14	EPDM
Voltage/Frequency	C1	24VDC
Control module	A0	OPEN/CLOSE control
Actuator version	3015	Actuator, motorized, operating time 11s, torque 15Nm, GEMUE, size 3 supply voltage B1, C1
Shaft connection and size	D08	Square, diagonal, WAF 8 mm

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 428 soft seated butterfly valve made from stainless steel or brass is motorized. A manual override and an optical position indicator are integrated as standard. With its rounded and polished disc edges, the butterfly valve is optimized for frequent cycle duties. The surface of the butterfly valve can be further finished.

Suitable for vacuum applications and low temperatures
High-quality butterfly valve made from stainless steel or brass
Available in small nominal sizes
Compact and robust body
