671 50D 883 20 4Z

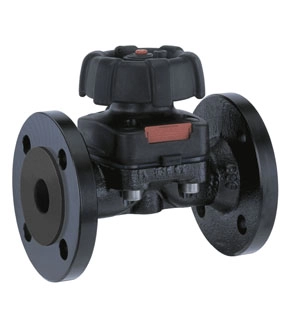

Diaphragm valve, manual

Item number:		88393205
Description

Type	671	Diaphragm valve, manually operated, plastic handwheel, plastic distance piece, optical position indicator
DN	50	DN 50
Body configuration	D	2/2-way body
Connection type	8	Flanges EN 1092 / PN16 / form B, Face to face EN 558, series 1, ISO 5752, basic series 1
Valve body material	83	EN-GJS-400-18-LT (GGG-40.3), hard rubber lined
Diaphragm material	2	NBR
Control function	0	manually operated
Actuator version	4Z	Thread for mounting of electrical position indicator GEMÜ 1215
Diaphragm size	50	Diaphragm size 50

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 671 2/2-way diaphragm valve has a low-maintenance plastic actuator and is manually operated. An integrated optical position indicator is standard.

Optional PVDF handwheel available in white (GEMÜ 611)
Extensive range of accessories available, e.g. electrical position indicator for "open" handwheel position or lockable handwheel clamp (GEMÜ 671)
