FUT 77 12 12 12 30 HP

Union tee

Item number:		88081673
Description

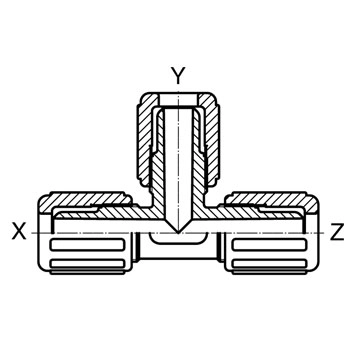

Type	FUT	Union tee Flare x Flare x Flare
Union nut material	77	PFA for flare connection
Connection X	12	3/4", international code: 12
Connection Y	12	3/4", international code: 12
Connection Z	12	3/4", international code: 12
Fitting material	30	PFA, perfluoroalkoxy
High Purity version	HP	High Purity

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The fitting bodies are made from PFA; the union nuts are made from PFA, PVDF or CPFA. All parts are manufactured in cleanroom conditions and have extremely high chemical resistance. The design also demonstrates a clearly reduced deadleg.

High reliability, even in high vibration applications
Simple operation
Various designs and connections
Sizes from ¼" to 1 ¼"
Suitable for high-purity media
Available as "Space saver version", for space-saving connection
