865R25D 721 4 544 1000

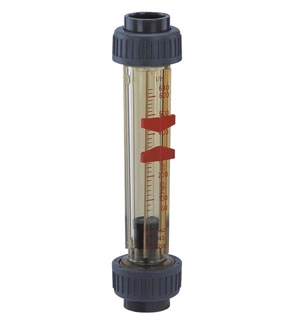

Variable area flowmeter

Item number:		88085344
Description

Type	865	Variable area flowmeter, PP float with magnet, (series 850)
RoHS conformance	R	Conformance to RoHS
DN	25	DN 25
Body configuration	D	Straight through tube
Connection type	7	Union end with DIN insert (socket)
Metering tube material	21	PA, transparent
O-ring material	4	FPM
Union material	5	Insert PP, union nut PP beige
Metering tube size	44	Conus 44
Measuring range	1000	Maximum measuring range of flowmeter
Medium	Wasser	Water
Temperature	20°C	Medium temperature
Scale minimum	100	Lower measuring range limit of scale
Scale maximum	1000	Upper measng range limit of scale
Unit	l/h	Litres per hour

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 850 flowmeter operates according to the variable area principle and has a transparent metering tube. The scale printed onto the metering tube is suited to the medium. Dovetail sections moulded onto the metering tube allow for easy mounting of adjustable visual flow indicators, limit switches and a continuous readout transmitter.

Good level of accuracy, simple operation
Clear and large size printed scale
ATEX version available as an option
Over 500 standard scales and 13,000 special scales are available with further scales on request
Corrosion-resistant plastic parts
