867R25D 82214 742 650

Variable area flowmeter

Item number:		88574746
Description

Type	867	Variable area flowmeter, 1.4571 (316Ti) stainless steel float with magnet, (series 850)
RoHS conformance	R	Conformance to RoHS
DN	25	DN 25
Body configuration	D	Straight through tube
Connection type	8	Flanges EN 1092, PN 16, form B
Metering tube material	22	PSU
O-ring material	14	EPDM
Union material	7	Insert 1.4408 (RP threaded socket), union nut stainless steel
Metering tube size	42	Conus 42
Measuring range	650	Maximum measuring range of flowmeter
Medium	Wasser	Water
Temperature	20°C	Medium temperature
Scale minimum	50	Lower measuring range limit of scale
Scale maximum	650	Upper measng range limit of scale
Unit	l/h	Litres per hour

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

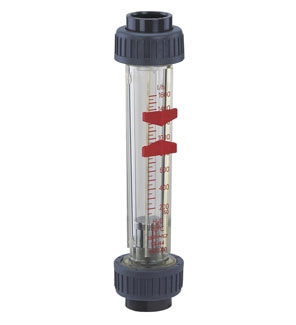

The GEMÜ 850 flowmeter operates according to the variable area principle and has a transparent metering tube. The scale printed onto the metering tube is suited to the medium. Dovetail sections moulded onto the metering tube allow for easy mounting of adjustable visual flow indicators, limit switches and a continuous readout transmitter.

Good level of accuracy, simple operation
Clear and large size printed scale
ATEX version available as an option
Over 500 standard scales and 13,000 special scales are available with further scales on request
Corrosion-resistant plastic parts
