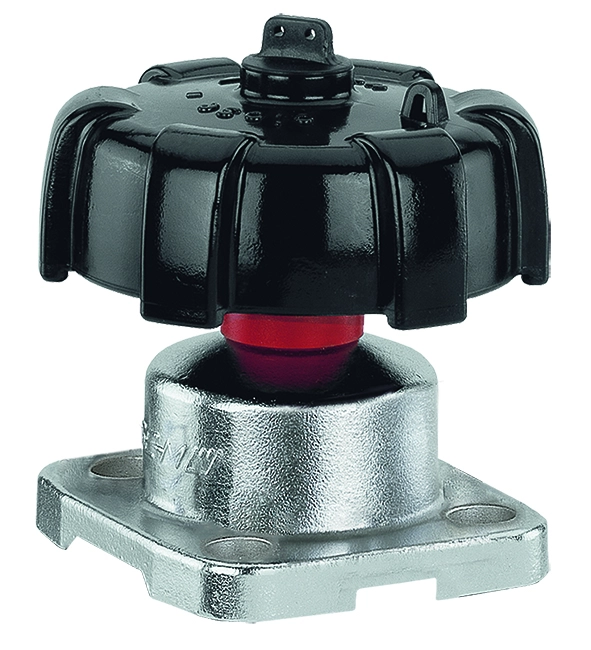

9673 40Z 03TS-C

Operator diaphragm valve, man.

Item number:		88575826
Description

Type	9673	Metal operator
Diaphragm size	40	Diaphragm size 40
Actuator use	Z	For Body Configuration B,D, M and T
Control function	0	manually operated
Actuator version	3TS	With seal adjuster, black handwheel
CONEXO	C	Integrated RFID chip for electronic identification and traceability

Request a quotation now
To see prices login/register here

Tender specifications Documents

Tender specifications for
