565 15D 120 411T3A2500

Control valve pneu.

Item number:		88319032
Description

Type	565	Control valve, pneumatically operated
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	1	Threaded socket DIN ISO 228
Valve body material	20	PVDF
Seal material	4	FPM
Control characteristic	A	Regulating cone, equal-percentage
Kv value	2500	2500 l/h
Control function	1	Normally closed (NC)
Actuator version	1T3	Operator size 1T3
This article is listed as a Dual-Use-good according to Regulation EU 2021/821 under Control list No. 2B350g. If these goods are supplied to countries outside the EU, the relevant export restrictions apply.

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

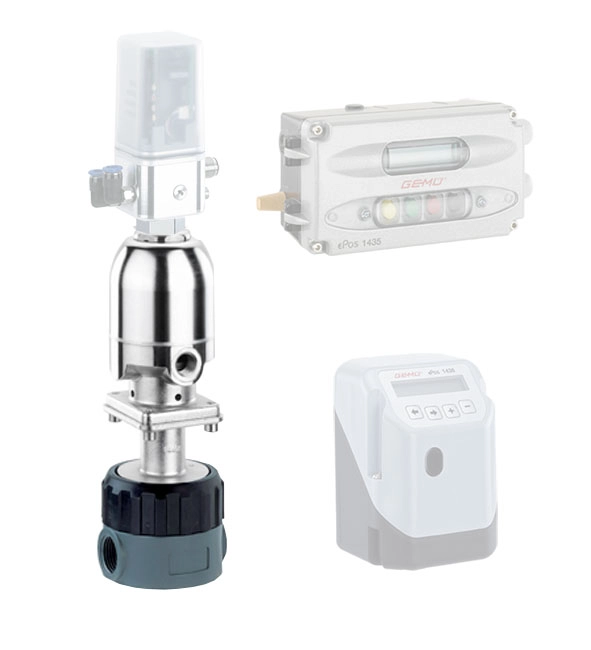

The GEMÜ 565 2/2-way globe control valve has a stainless steel piston actuator and is pneumatically operated. All actuator parts are made from stainless steel (except seals). It is available with a Normally Closed control function (NC). PVC-U and PVDF are available as valve body materials. The control valve can only be operated with an electro-pneumatic positioner or process controller. Direct or remote mounting of a positioner (GEMÜ 1434, 1435, 1436) is required.

Suitable for inert, corrosive, liquid and gaseous media
Hermetic separation between medium and actuator
