202 15D 2 1 5123050/60

Solenoid valve, directly cont.

Item number:		88001317
Description

Type	202	Solenoid valve, directly controlled
Body configuration	D	2/2-way body
Connection type	2	Solvent cement socket DIN
Valve body material	1	PVC-U, grey
Seal material	5	PTFE
Control function	1	Normally closed (NC)
Voltage	230	230 V
Frequency	50/60	50 - 60 Hz

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

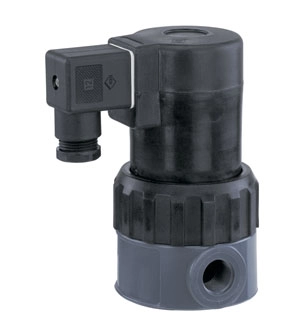

The GEMÜ 202 directly controlled 2/2-way solenoid valve has a completely plastic encapsulated coil. The armature is sealed by a bellows made of PTFE backed by an additional safety diaphragm. The valve body is available in various materials and with a straight through or angle valve body design.

Good cleanability
The solenoid can be replaced without removing the valve body from the piping
Hermetic separation between medium and actuator
