655 80D 883 40 6

Straightway Diaphr.Valve, man.

Item number:		88813232
Description

Type	655	Straight way diaphragm valve, manually operated, metal handwheel, metal top
DN	80	DN 80
Body configuration	D	2/2-way body
Connection type	8	Flanges EN 1092 / PN16 / form B, Face to face EN 558, series 1, ISO 5752, basic series 1
Valve body material	83	EN-GJS-400-18-LT (GGG-40.3), hard rubber lined
Diaphragm material	4	FPM
Control function	0	Manually operated
Actuator version	6	Operator size 6

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

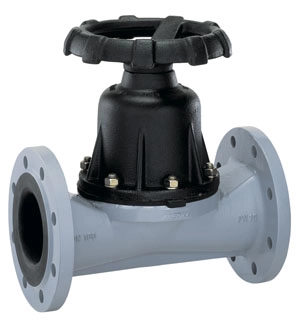

The GEMÜ 655 2/2-way diaphragm valve has a metal handwheel and is manually operated. The valve body has a full bore design.

High mechanical stability
High flow rate due to straight through flow
Can be retrofitted with a pneumatic actuator
