Manual 2/2-way diaphragm valve with metal body

GEMÜ 602

ConfigureTechnical data sheet

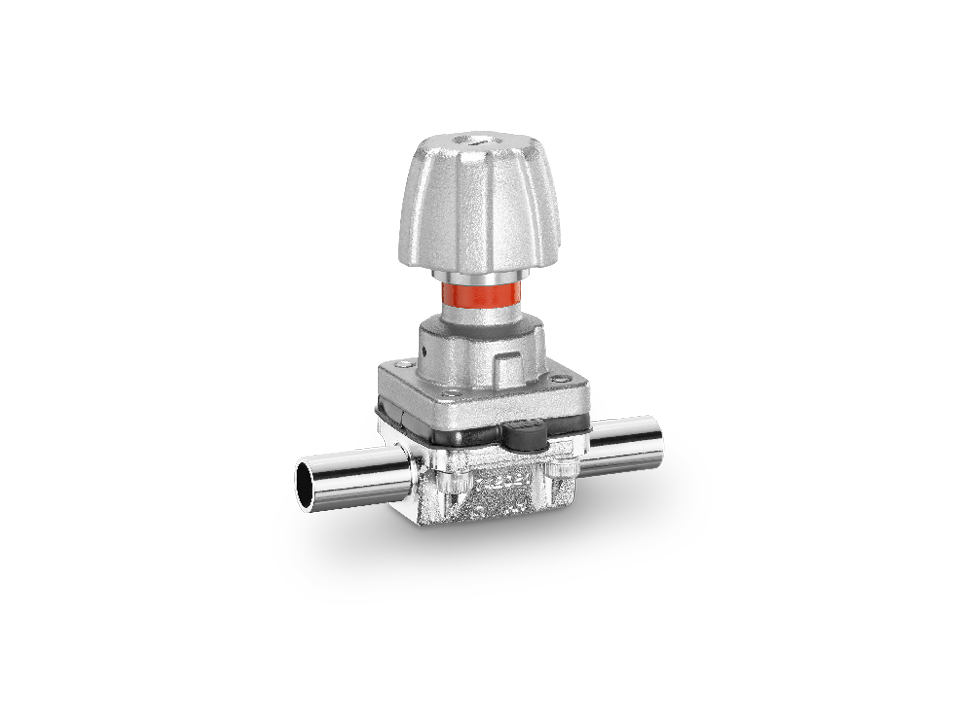

Manually operated diaphragm valve with stainless steel connections and handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Compact valve with stainless steel handwheel in MG 8

Product information

The GEMÜ 602 2/2-way diaphragm valve has a stainless steel handwheel and is manually operated. Bonnet and internals are made entirely from stainless steel. A closing stroke limiter to increase service life of the diaphragm and an optical position indicator are integrated as standard.

Key features

  • Long diaphragm service life thanks to patented closing stroke limiter
  • Autoclave capability
  • CIP/SIP capable
  • Continuous minimum flow regulation thanks to closing stroke limiter
  • Compact design (ideal when space is at a premium)
Manually operated diaphragm valve with stainless steel connections and handwheel – ideal for the pharmaceutical, biotechnology, and food industries.

Technical features

Parameters
Value
Media temperature
-10 to 100 °C
Sterilization temperature
Max. 150 °C
Ambient temperature
0 to 60 °C
Operating pressure
0 to 10 bar
Nominal sizes
DN 4 to 15
Body configurations
2/2-way body
Multi-port body
Tank valve body
Connection types
Clamp
Spigot
Threaded connection
Connection standards
ANSI
ASME
BS
DIN
EN
ISO
JIS
SMS
Body materials
1.4408, investment casting material
1.4435 (316L), forged material
1.4435 (BN2), forged material
1.4435, investment casting material
1.4539 (904L), forged material
EN-GJS-400-18-LT
Diaphragm materials
EPDM
FKM
PTFE/PVDF/EPDM
Conformities
3A
CRN
EAC
FDA
Oxygen
Reg. (EU) No. 10/2011
Regulation (EC) No. 1935/2004
Regulation (EC) No. 2023/2006
TA Luft (German Clean Air Act)
USP

Downloads

17 Results
  • Datenblatt GEMÜ 601, 602, 612, 673

    pdf, 5.29 MB, DE

  • Operating instructions GEMÜ 601, 602 (US)

    pdf, 1.29 MB, EN

  • Notice d'utilisation GEMÜ 601, 602

    pdf, 758 KB, FR

  • Руководство по эксплуатации GEMÜ 601, 602

    pdf, 848 KB, RU

  • Declaration of Conformity - GEMÜ product collection

    pdf, 104 KB, EN

  • Driftsvejledning GEMÜ 601, 602

    pdf, 730 KB, DA

  • Konformitätserklärung oil grease free - GEMÜ product collection

    pdf, 104 KB, DE

  • Navodila za uporabo GEMÜ 601, 602

    pdf, 738 KB, SL

  • Eksploatavimo instrukcija GEMÜ 601, 602

    pdf, 740 KB, LT

  • 技术单页 GEMÜ 601, 602, 612, 673

    pdf, 1.14 MB, ZH

  • Betriebsanleitung / Operating instructions GEMÜ 601, 602

    pdf, 987 KB, DE, EN

  • Datasheet GEMÜ 601 602 612 673 (US)

    pdf, 1.06 MB, EN
