Electromotive 2/2-way Mambrane valve with metal body

GEMÜ 628

ConfigureTechnical data sheet

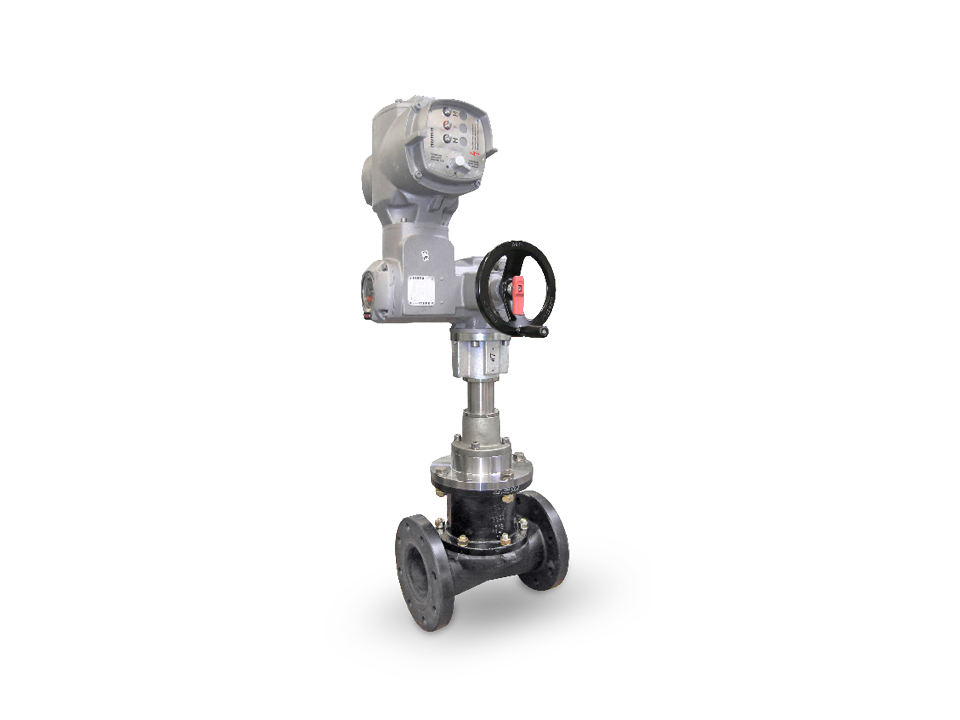

Electrically operated diaphragm valve with flange connection and handwheel – ideal for the chemical industry, water treatment, and process automation.

Robust diaphragm globe valve with AUMA actuator

Product information

The GEMÜ 628 motorized 2/2-way diaphragm valve has a motor/control units made by AUMA. The valve body has a weir-type design.

Key features

  • No auxiliary air pressure supply required
  • Diaphragm valve body combinations for virtually all media available
  • Optional flow direction
  • Valve can be cleaned without disassembly of actuator
  • Proven motorized actuators and control units in modular design
Electrically operated diaphragm valve with flange connection and handwheel – ideal for the chemical industry, water treatment, and process automation.

Technical details

Parameters
Value
Media temperature
0 Up to 150 °C
Ambient temperature
0 Up to 50 °C
Operating pressure
0 Up to 10 bar
Nominal sizes
DN 32 Up to 150
Connection types
Flange
thread
Body materials
EN-GJL-250, cast iron material
EN-GJS-400-18-LT (GGG 40.3)
EN-GJS-400-18-LT, SG iron material with butyl lining
EN-GJS-400-18-LT, SG iron material with hard rubber lining
EN-GJS-400-18-LT, SG iron material with soft rubber lining
EN-GJS-400-18-LT, SG iron material, PFA lined
EN-GJS-400-18-LT, SG iron material, PP lined
EN-GJS-500-7, ductile iron material, PFA lined
EN-GJS-500-7, ductile iron material, PP lined
Conformities
CRN
EAC
