ASR0080US14F05/07S17S14A X

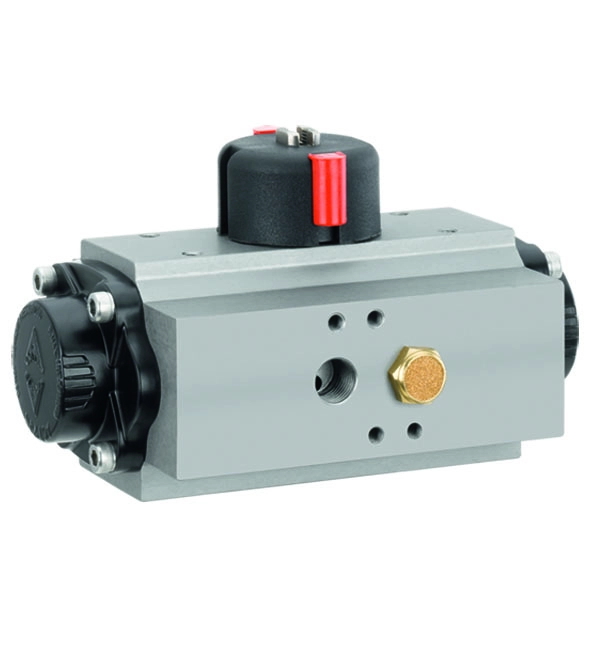

Actuator, pneumatic, SA

Item number:		88398937
Description

Type	ASR	Actuator - pneumatic, Single acting, Universal actuator, pneumatic, single acting, clockwise rotation
Actuator version	0080U	0080 (ADA/ASR/ASL)
Spring set	S14	Numbers of spring (ASR/ASL)
Actuator flange	F05F07	F05/F07, flange type DIN EN ISO 5211, F05, flange type DIN EN ISO 5211, F07, flange type DIN EN ISO 5211
Location spigot	Y	With location spigot
Coupling and wrench size	S17/S14	Star, WAF 17 mm, adapter to WAF 14 mm, Star, WAF = 17 mm, adapter to WAF = 14 mm
Material	A	General industrial version (ASR/ASL/ADA/GSR/GSL/GDR), Version A (SC/SO/DR/DL), body aluminum, anodized coating 25-35μm, end caps aluminum, powder-coated, shaft C-steel + ENP, screws A2, Gen. industrial version (ADA/ASR/ASL), housing alu, anodising layer 25-35µm, end caps alu, powder coated, shaft C steel + ENP, bolts A2
Special version	X	ATEX version
Special execution	X	ATEX certification
Control pressure range	5,5-8,0	5,5-8,0 bar
GEMUE type	AU08	ASR0080U
GEMUE actuator spring set	K	S14, Numbers of spring (ASR/ASL)
GEMUE connection	C	F05/F07 S17
GEMUE actuator execution	0	General industrial version (ADA/ASR/ASL)

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

GEMÜ ASR is a pneumatic single acting quarter turn actuator. It works according to the double piston rack and pinion principle and is suitable for mounting to butterfly valves or ball valves.

ATEX version available as an option
Tried and tested actuator design
Easy setting of switch points
Simple installation
Flexible and versatile
Stroke limiter available (optional)
Robust design
SIL 3 certified
Diverse accessories

Tender specifications for

Language

Language:
