658 15D60421311T1 1841

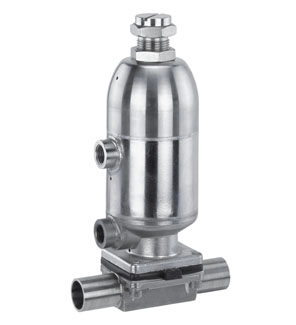

Diaphragm valve, pneumatic

Item number:		88266717
Description

Type	658	Diaphragm valve, pneumatically operated, stainless steel two stage actuator
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	60	Spigot ISO 1127 / EN 10357 series C / DIN 11866 series B
Valve body material	42	1.4435 (BN2), forged body Δ Fe < 0.5 %
Diaphragm material	13	EPDM
Control function	1	Normally closed (NC)
Actuator version	1T1	Operator size 1T1
Execution type	1841	Media wetted parts cleaned for high purity media and packed in plastic bag and surface 1508
Surface	1508	Ra ≤ 0.6 μm (25 μin.) for media wetted surfaces, electropolished internal / external
Diaphragm size	10	Diaphragm size 10

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 658 2/2-way diaphragm valve has a two-stage actuator. In addition to full stroke, a partial stroke can be set via two pistons working independently of each other.All actuator parts including closing springs (except seals) are made from stainless steel. The valve is available with a Normally Closed control function. An opening stroke limiter for setting the partial stroke is integrated as standard.

An adjusting screw in the actuator enables the setting of the opening and closing function and also the setting of a partial stroke (for reduced flow)
Both fast on/off operation and precision dosing of the working medium possible
Suitable for inert, corrosive, liquid and gaseous media
CIP/SIP capable
Compact design (ideal when space is at a premium)
Version according to ATEX on request
Mounting of proximity switches (M8x1) for OPEN and CLOSED position feedback possible (MG 25 – 50)
