610 15D71 55611/N 1094

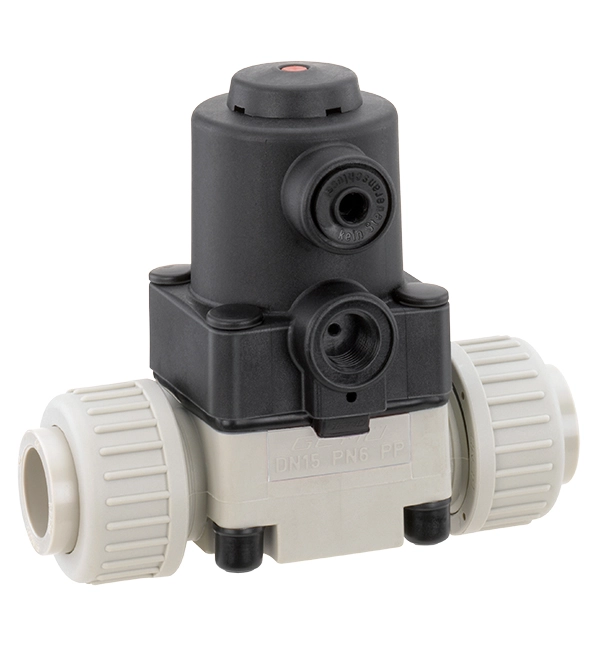

Diaphragm valve, pneumatic

Item number:		88798927
Description

Type	610	Diaphragm valve, pneumatically operated, plastic piston actuator, optical position indicator
DN	15	DN 15
Body configuration	D	2/2-way body
Connection type	71	Union ends with DIN insert (for butt welding), only in material PE, only in conjunction with K number 1094
Valve body material	5	PP, reinforced
Diaphragm material	56	PTFE/FKM
Control function	1	Normally closed (NC)
Actuator version	1/N	Operator size 1/N
Execution type	1094	Short insert, material PE, PN 10, (butt welding)
Diaphragm size	10	Diaphragm size 10

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ 610 2/2-way diaphragm valve has a low maintenance plastic piston actuator and is pneumatically operated. An integral optical position indicator is standard. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available.

Same mounting height planes over multiple nominal sizes
High flow rate
Integral optical position indicator and closing stroke limiter as standard
Option with electrical position indicator
