B22 32D60C7 5L X

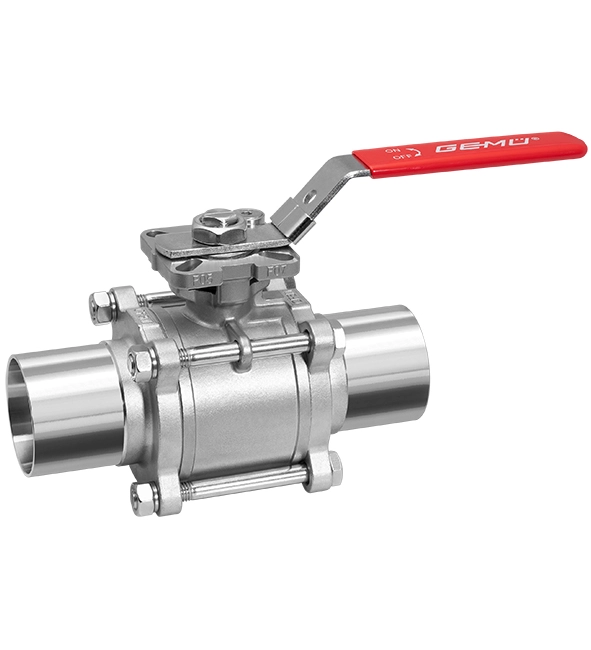

Ball valve, manual 2/2-way

Item number:		88737220
Description

Type	B22	Ball valve, metal, manually operated, three-piece body, ISO 5211, top flange, lockable hand lever, low-maintenance spindle seal and blow-out proof shaft, with anti-static unit
DN	32	DN 32
Body/ball configuration	D	2/2-way body
Connection type	60	Spigots ISO 1127 / EN 10357, series C
Ball valve material	C7	1.4408 / CF8M (body), 1.4409 / CF3M (end cap), 1.4401 / SS316 (ball, shaft)
Seal material	5	PTFE
Control function	L	Manually operated, lockable hand lever
Special execution	X	ATEX certification

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

The GEMÜ B22 3-piece 2/2-way metal ball valve is manually operated. It has a plastic sleeved hand lever with a locking device. The seat seal is made of PTFE.

Suitable for vacuum applications
Low maintenance and reliable spindle sealing
Antistatic device
