1232000ZA113051110304

Electr. position indicator

Item number:		88214969
Description

Type	1232	Electrical position indicator
Fieldbus	000	Without
Accessory	Z	Accessory
Device version	A11	Open, LED, PNP
Switch	305	Proximity switch, 3-wire, NO contact, PNP Balluff, BES 516-371-SA 16
Electrical connection	1110	M12 plug, 4-pin
Connection diagram	304	M12 4-pin plug

Request a quotation now
To see prices login/register here

Description Features Tender specifications Documents

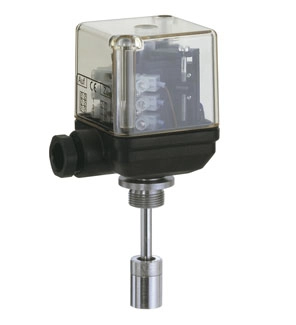

The GEMÜ 1232 electrical position indicator is suitable for mounting to pneumatically operated linear actuators. The position of the valve spindle is reliably detected and fed back electronically via one or two inductive proximity switches, using play-free and non-positive mounting. The GEMÜ 1232 has been specially designed for valves with a stroke of 2 to 20 mm.

Position feedback via 2-wire proximity switches (NAMUR) or 3-wire proximity switches (PNP) with optional LED indication of end position
Adjustable switch point tolerances via threaded spindle
Can be fitted to GEMÜ valves or third-party actuators
UL approval available
